Aquashield Centurion 3 Stage UV System Description
Microlene's proven three-stage filtration and ultraviolet disinfection systems can provide continuous clean and safe water from your rainwater tanks.
Note: Microlene disinfection systems cannot remove dissolved metals, chemicals or toxins from the water. Additional treatment is required for these contaminants.
In conjunction with pre-filtration, UV is the best practical option for treating drinking water and is widely used in disinfecting the drinking supplies of not just individual homes, but entire towns.
Simplistic in operation, these systems feature a tricolour LED that indicates system status and a 4-digit display to indicate lamp life remaining. Pressing the button will change the display to indicate total running time.
When the UV lamp is on and within its operating age, the LED will be green. When the UV lamp is not on or the lamp life has expired, the LED will be illuminated red and an audible buzzer will be sounding.
To remedy this condition, the UV lamp must be replaced with a new genuine Microlene UV lamp.
Centurion MCS Features
Special filter design with O-ring groove for fail-safe installation
High maximum operating pressure 827kPa (120 psi), and single manifold heads (no potential leaks between heads)
Tri Colour LED display that indicates system status and a 4-digit display to indicate lamp life remaining
316L stainless steel, axial flow chambers allow for optimum efficiency plus lamp and sleeve service without the need to drain the water
Coated UV lamps for consistent UV output throughout life
10,000 hour LP lamps – longest residential lamplife on the market
Ready for quick installation and use
10 year limited warranty on UV chambers
Splash-proof controller with constant current electronic ballast designed to IP54 ingress protection rating
Note: Cannot treat water contaminated by metals, chemicals or algal toxins.
Applications
Filtration and disinfection of:
Rainwater
Bore or surface water – subject to water quality
Suits small to medium homes potable water supply
Industry leading warranty
10 years on stainless UV chamber
3 years on electronic controller
14 months on lamps, sensors and sleeves
12 months on filter housings

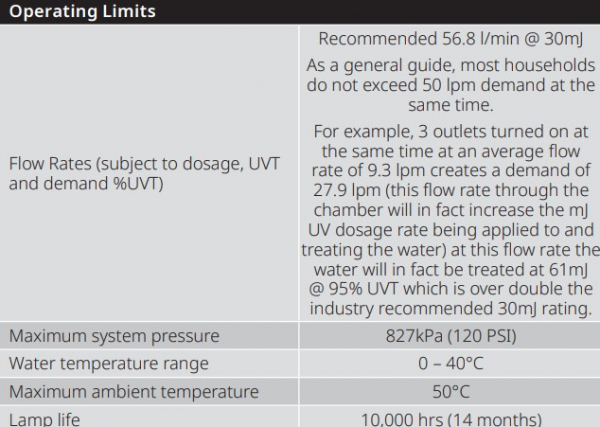

Operating Limits

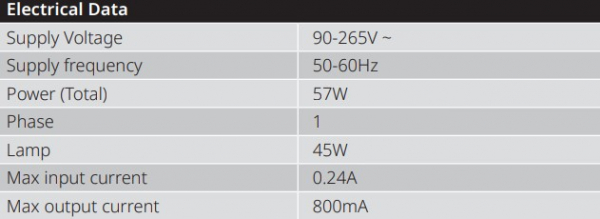

Electrical Data

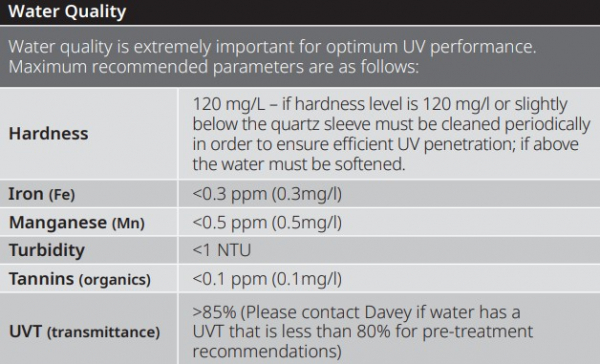

Water Quality

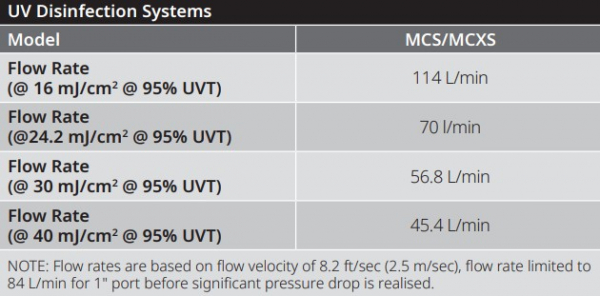

UV Disinfection Systems
Documents
