Davey ASC50 Aquashield Centurion UV System

$1,499.00
Brand Davey
Model ASC50
Availability In Stock
General information

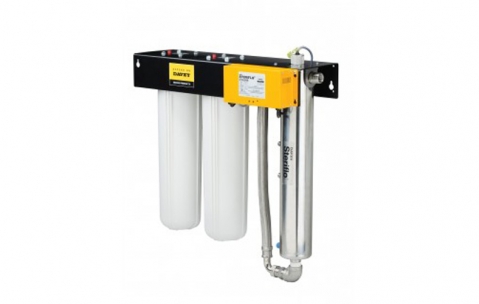

Aquashield® Centurion pre-assembled wall mounted packaged Filtration and UV system, treating flows up to 70lpm.

Aquashield Centurion wall mount systems are a fully assembled package comprising of a 20 micron Filterpure filter to remove larger particles, followed by a 1 micron filter for cyst reduction.

The water then passs through the Davey Steriflo UV chamber which inactivates the bacteria, thereby not allowing them to multiply and cause illness.

The Centurion system is very easy to plumb into your existing water line with a flexible left to right or right to left plumbing configuration for installation flexibility.

Features:

  • Proven three stage filtration and UV treatment, removes Giardia,Cryptosporidium, bacteria and viruses.
  • Left to right or right to left installation, for installation flexibility
  • Easy to install to an existing pump or a Davey water pressure system.
  • Flexibility to install with an existing pump or to a Davey home water pressure system
  • Provides 30mj/cm3 at 90% or above UV Transmission (UVT)



Model No.  DescriptionKit Includes  Maximum Flow Rate
ASC50 Aquashield Centurion wall mount UV system - 50 lpm 2 x 10 inch jumbo Filterpure housings containing 20 micron and 1 micron filters and a 50lpm Steriflo unit mounted on a sturdy wall bracket 50 lpm
ASC70 Aquashield Centurion wall mount UV system - 70 lpm 2 x 20 inch jumbo Filterpure housings containing 20 micron and 1 micron filters and a 70lpm Steriflo unit mounted on a sturdy wall bracket 70 lpm



All Steriflo units provide 30mj/cm3 at 90% or above UV transmission (UVT)



Documents below are available for download





Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Maximum system pressure
    700 kPa
  • Water temperature range
    5 – 40ºC
  • Maximum ambient temperature
    50ºC
  • Lamp life
    9,000 hrs (1 year)
  • Lamp
    45W
  • Input
    5.9A
  • Output
    5.7A max
  • Warranty
    1 Year
