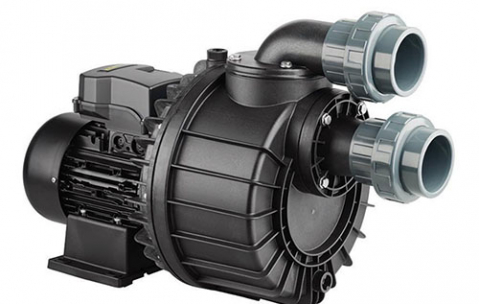

Hurricane Turbo pump and swim jet system - M7402

$1,949.00
Brand Davey
Model M7402
Availability In Stock
General information

Video



Description

  • Hurricane Turbo Pump and Swim-Jet System

  • Produces a high flow, high pressure jet of water to swim against

  • Maximises the value and enjoyment of your pool or swim spa

  • Conveniently located air switch for swim jet control

  • Swim jet options are sold separately (refer below)



Application

Ideal for swim jet installations in fibreglass pools for sport and rehabilitation purposes.



Features

• Double insulated to water circuit and provided with an Equipotential Bonding Point for AS/NZ 3000 wiring standards

• Maximises the value and enjoyment of your pool

• High powered pump provides a high flow jet of water to swim against

• Swim jet controlled by air switch on swim jet. No need to leave the pool to turn on or off

• Turbo swim jet outlet provides 3 settings for jet flow control

• Simple installation of swim jet – only one hole required for both suction and return points

• Designed for dependability and long life using corrosion resistant, UV stabilised materials

• Self priming up to 4 metres for easy operation and installation

• Stainless steel pump shaft suited for salt chlorinated pools

• 65mm barrel unions for easy installation to large OD pipe

• 65-80mm PVC adaptors also available for easy connection to DN80 pipe – M3689

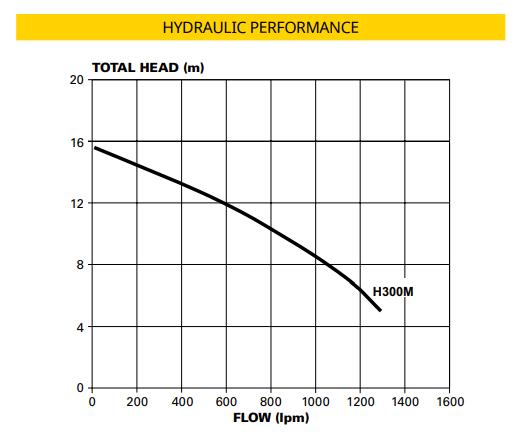

Curve

curve165



DOCUMENTS

Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Model
    M7402 / 300M
  • Voltage (V)
    220-250 V
  • Supply Frequency / Phase
    50Hz / 1
  • Run Current (A)
    12.5 A
  • Motor input power (W)/hp
    3000
  • Motor output power (W)/hp
    2300
  • RPM
    2900
  • Enclosure class (IP)
    55
  • Insulation class
    F
  • Approval No.
    W2442
  • Warranty
    36 months
