General information

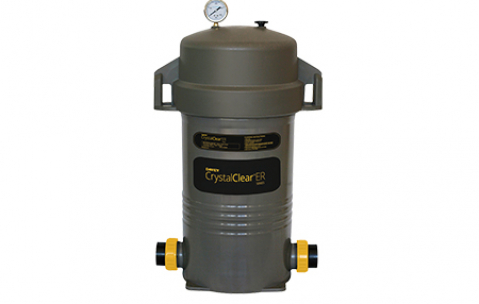

Davey CrystalClear ER Series - Premium Cartridge Filter
The CrystalClear ER Cartridge Filter provides sparking clear water with minimal maintenance and no backwashing.
Constructed as a solid one-piece mould for a non-corrosive long life and designed to house an extra large, heavy duty filter fabric to maximise dirt holding capacity.
Features
-
Provides crystal clear water with minimal maintenance.
-
Less water used, no backwashing needed. Ideal for applications where backwashing may not be practical or in areas where water may be scarce.
-
Tank constructed from high-impact polypropylene as a solid one-piece mould for a non-corrosive long life.
-
Low profile designed with easy access to the filter cartridge for removal, cleaning, and installation.
-
A quality pressure gauge makes it easy to see when element cleaning is required.
-
A manual air bleed enables the filter to be de-pressurised before opening for cleaning.
-
Filter cartridges are fabricated from heavy-duty, reusable polyester fabric with wide and deep pleats for better filter efficiency, easy cleaning, and longer cartridge life.
-
Replacement filter elements available.
-
50mm quick connect barrel unions supplied for simple installation.
-
Maximum flow rate 510 lpm.
-
Maximum working pressure 250 kPa.
Video
CrystalClear ER Series
Dimensions
Technical Data
Warranty Period
10 years on Tank, 1 year on components.
Documents
- Features and technical specification of the product. Please contact us for further information and specifics.
-
ModelDCC270
-
Inlet/Outlet Size (mm)40/50
-
Filter Area (ft2 )270
-
Filter Area (m2 )25.1
-
Max Flow Rate^ (lpm)505
-
6 hour turnover (litres)176,000
-
Maximum water temperature50ºC
-
Maximum operating pressure250kPa
-
Maximum Pressure Drop20kPa
-
Warranty10 years on Tank, 1 year on components.
-
DCC270 Davey Crystal Clear ER C/Filter 270ft
$809.00
Brand | DAVEY |
Model | DCC270 |
Availability | In Stock |
