DCC135 Davey Crystal Clear ER C/Filter 135ft

$529.00
Brand DAVEY
Model DCC135
Availability In Stock
General information

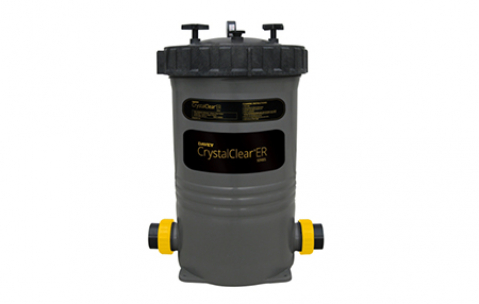

Davey CrystalClear ER Series - Premium Cartridge Filter

The CrystalClear ER Cartridge Filter provides sparking clear water with minimal maintenance and no backwashing.

Constructed as a solid one-piece mould for a non-corrosive long life and designed to house an extra large, heavy duty filter fabric to maximise dirt holding capacity.



Features

  • Provides crystal clear water with minimal maintenance.

  • Less water used, no backwashing needed. Ideal for applications where backwashing may not be practical or in areas where water may be scarce.

  • Tank constructed from high-impact polypropylene as a solid one-piece mould for a non-corrosive long life.

  • Low profile designed with easy access to the filter cartridge for removal, cleaning, and installation.

  • A quality pressure gauge makes it easy to see when element cleaning is required.

  • A manual air bleed enables the filter to be de-pressurised before opening for cleaning.

  • Filter cartridges are fabricated from heavy-duty, reusable polyester fabric with wide and deep pleats for better filter efficiency, easy cleaning, and longer cartridge life.

  • Replacement filter elements available.

  • 50mm quick connect barrel unions supplied for simple installation.

  • Maximum flow rate 510 lpm.

  • Maximum working pressure 250 kPa.



Video

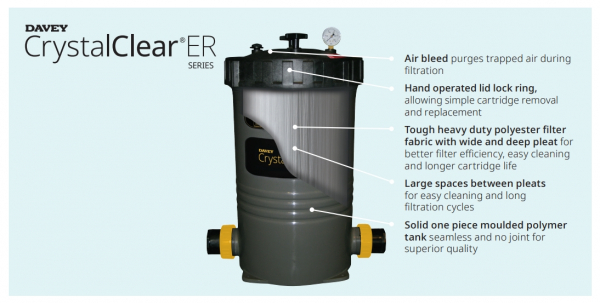

CrystalClear ER Series

dcc

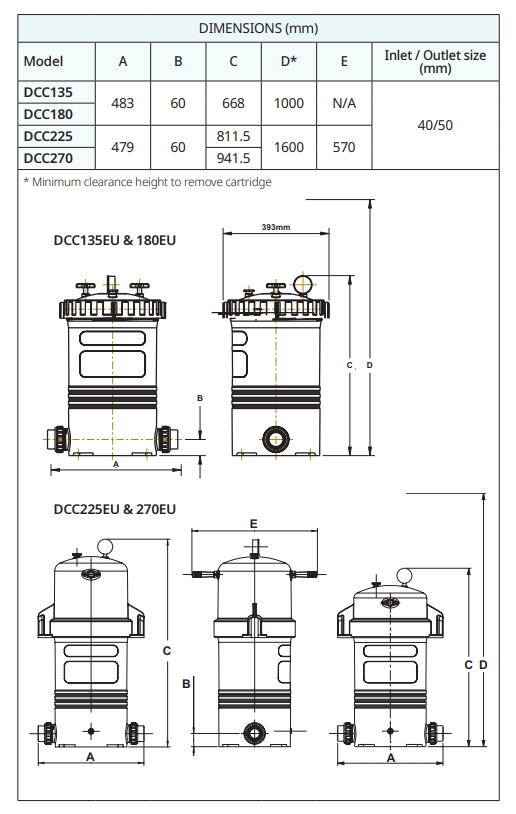

Dimensions

dccdimension

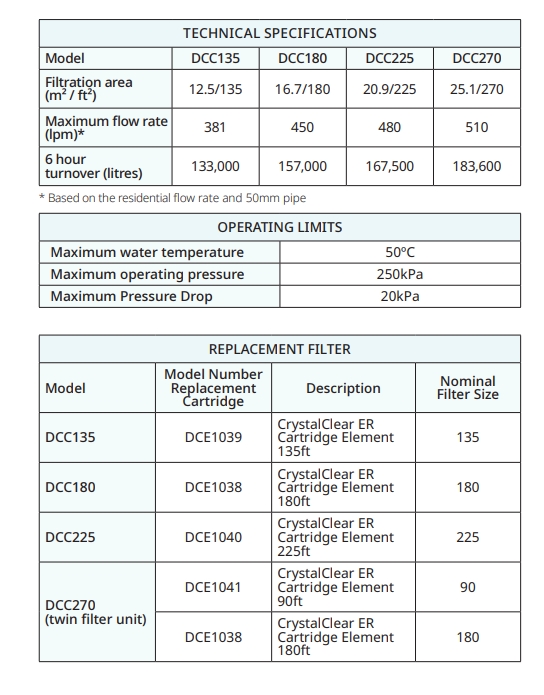

Technical Data

t



Warranty Period

10 years on Tank, 1 year on components.



Documents

Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Model
    DCC135
  • Inlet/Outlet Size (mm)
    40/50
  • Filter Area (ft2 )
    135
  • Filter Area (m2 )
    12.5
  • Max Flow Rate^ (lpm)
    381
  • 6 hour turnover (litres)
    133,000
  • Maximum water temperature
    50ºC
  • Maximum operating pressure
    250kPa
  • Maximum Pressure Drop
    20kPa
  • Warranty
    10 years on Tank, 1 year on components.
