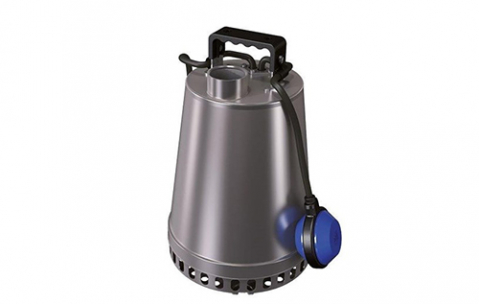

Description
Designed for stormwater dewatering, or water from ponds and pits and for rainwater collection.
0.75kW, 1.0hp, 240V, max hd 16m, max flow 330L/m, solids up to 12mm, 1 1/2" BSPF outlet
High-performance, compact stainless steel submersible pumps for optimal service in household installations and light commercial applications.
DR series pumps are suitable for clean water applications containing soilds up to 12mm and can be used for draining rooms, emptying tanks, draining water from ponds, streams and pits and also for rainwater collection.
With an electromechanical assembly in AISI304-chrome-nickel steel for submerged operation, the pump is fitted with two opposing mechanical seals in silico carbide and alumina graphite in the oil sump with food-grade oil lubrication and a v-ring in direct contact with the liquid.
The DR Steel easily converts from an ordinary submersible pump to a dry floor unit. When operating in this mode, the suction level can be reduced to as little as 5mm above the groud.
Warranty
2 Year Zenit Warranty
APPLICATIONS
Drainage pump in 304SS, complete with twin mechanical seals in oil bath and through motor cooling which guarantees motor cooling even at low pumping levels. Strainer base can be converted to allow pumping down to 5mm for special applications.
The pump is characterised by:
• For clean water containing solids up to 12mm
• For draining rooms or emptying tanks
• For water from ponds, streams or pits and for rainwater collection.
• Max head 12.4m
• Max flow 300 l/min
