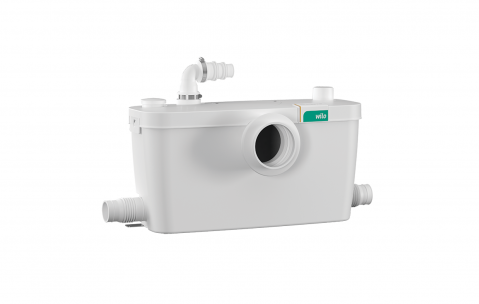

Introducing the HiSewlift 3! Wilo's small sewage lifting unit with macerator.

• This little guy is made narrow for a simple front-wall installation.
• Low-noise operation and installed active carbon filter for high user comfort.
• Reliable capacity (!!!) and low electricity consumption
• Simple installation with flexible connection options
• Ready for connection from the get-go

• Low-noise operation and installed active carbon filter for high user comfort
• Reliable capacity and low electricity consumption for efficient sewage disposal
• Simple installation with flexible connection options
• Can accept 3 x inlet connections in addition to direct toilet connection

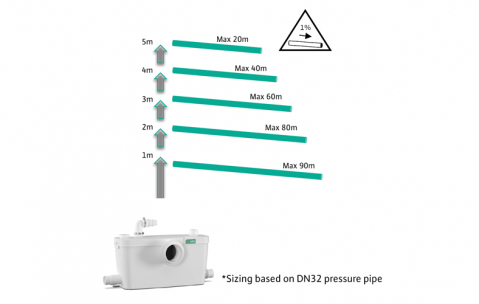

• Vertical Lift up to 5m
• Horizontal Run of up to 90m

Tech Data (Specification)

• Mains connection 1~230 V, 50 Hz
• Mains connection cable 1.5 m, with shock-proof plug
• Fluid temperature max. 35 °C
• Pressure connection DN 32
• Inlet connection DN 40
• Protection class IP 44
• Gross tank volume 17.4 L
• Switching volume  1 L

Equipment Function

• Ready-to-plug
• Thermal motor protection
• Level checking via a pneumatic pressure transducer
• Integrated non-return valve
• Fixation material
• Active carbon filter

IN THE BOX

• 1 x Wilo-HiSewlift 3-35
• 1 x Manual

PACKAGE SIZE & WEIGHT

• Dimensions 622 x 353 x 243 (W x H x Depth) -mm
• Gross Weight: 5.7kg
