Stratos MAXO-Z 50/0,5-9 PN 6/10

$5,779.00
Brand Wilo
Model Stratos MAXO-Z 50/0,5-9
Availability In Stock
General information

Description

The Wilo-Stratos MAXO-Z has specifically been developed for drinking water applications and combines the innovative characteristics of the Wilo-Stratos MAXO with a stainless steel housing.

The durable and hygienic material sets it apart from other domestic hot water circulators on the market.



Construction

Smart glandless circulator with screwed connection or flange connection, EC motor with integrated electronic power adjustment.

Application

Hot-water heating systems, air-conditioning systems, closed cooling circuits, industrial circulation systems.



Benefits

• Intuitive operation by application-guided settings with the Setup Guide plus the combination of a new display and operating button using the Green Button Technology

• Highest standard of drinking water hygiene and energy efficiency with the new, intelligent T-const. control function

• Optimum hygiene support thanks to the detection of thermal disinfection

• Latest communication interfaces (e.g. Bluetooth) for connecting to mobile terminal devices and direct pump networking using Wilo Net for multiple pump control

• Maximum convenience in electrical installation thanks to a clearly arranged and spacious terminal room and the optimised Wilo-Connector

• Various options for integration into the building management system

• Maximum energy effciency thanks to the combination of optimised and innovative energy-saving functions (e.g. No-Flow Stop)

• Optimum system effciency thanks to new and innovative intelligent control functions such as Dynamic Adapt plus, Multi-Flow Adaptation, Tconst and ΔT-const

• State-of-the-art communication interfaces (e.g.Bluetooth) for connection to mobile devices, including direct pump networking for multi-pump control via the Wilo Net



Product features

• Pump housing made of stainless steel

Thermal insulation shell

EC motor technology

Full graphic display with setting assistant

Interfaces to building automation

Bluetooth interface

Green button Technology

Cable connections and terminals

Wilo-connector



Wilo-Stratos MAXO-Z

para diagram

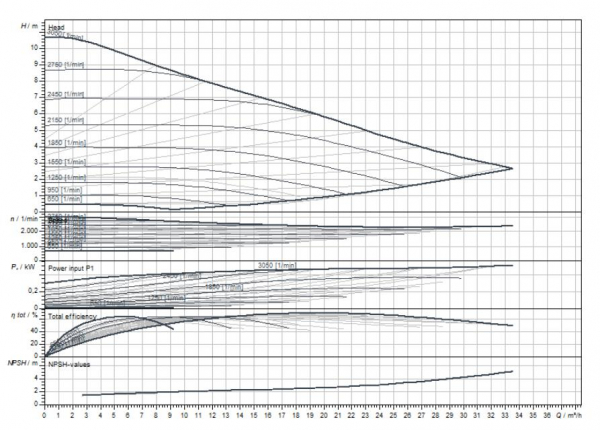

Pump curves

curve42

Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Model
    Stratos MAXO-Z 50/0,5-9
  • Type
    Hot water circulation pump
  • Maximum operating pressure PN
    10 bar
  • Max. permitted total water hardness
    3.57 mmol/l (20°dH)
  • Energy efficiency index (EEI)
    0.17
  • Mains connection
    1~230 V, 50/60 Hz
  • Rated power P2
    0.46 kW
  • Rated current IN
    2.4 A
  • Min. speed nmin
    650 1/min
  • Max. speed nmax
    3050 1/min
  • Power consumption P1 min
    10 W
  • Power consumption P1 max
    550 W
  • Warranty
    2 years
