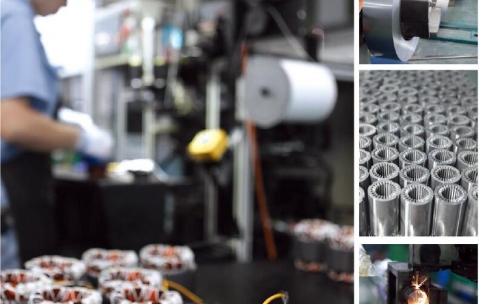

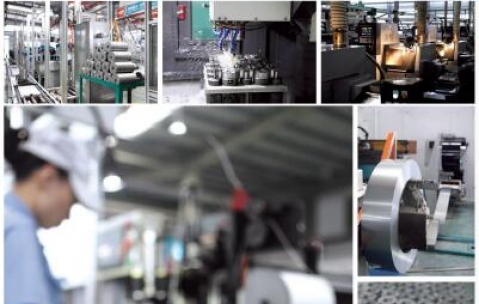

"SHIMGE" is specialising in manufacturing water pumps for 30 years, and it is one of the most famous listed companies in China. The annual production of water pumps is more than 1.5 million. To make sure the quality of the products, SHIMGE has currently passed ISO9001, ISO14001 and OHSAS18001 certification, introduced excellent performance management in line with GB/T 19580 and established a sound quality assurance system. SHIMGE has equipped an industry-leading physiochemical testing centre, and its delivery performance inspection platform has reached a precision of grade B (grade 1) in the evaluation conducted by an authoritative agency. In addition, its products have passed GS, CE and UL certification , and met the specifications of the RoHS Directive.

SHIMGE has become one of the top brands in the world, unparalleled quality and comparable to Grundfos & Will.

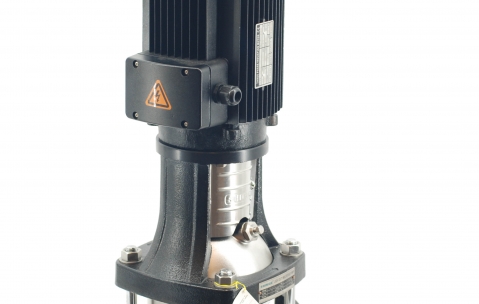

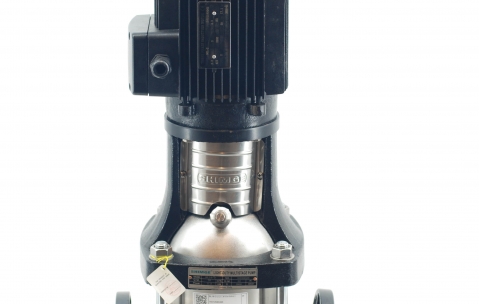

Shimge BL series stainless steel vertical multi-stage centrifugal pump (afterwards called pump) boasts characters of high efficiency, low noise, steady operation, etc. The hydraulic pump set adopts the non-self-priming vertical multi-stage structure, ensuring a compact body, easy installation, convenient operation and maintenance.

FEATURES

• Stainless steel AISI304
• High efficiency, low noise, steady operation
• Adopt the non-self-priming vertical multi-stage structure, ensuring a compact body, easy installation, convenient operation and maintenance
• Max ambient pressure: 1.0 MPa
• Medium temperature: 0°C~68°C (normal type), 0°C~120°C (hot water type)
• Max head: 26 m
• Max flow: 467 L/min
• Power: 2.2 kw
• Widely applied in industry, water supply, liquid transfer, water treatment, irrigation etc
• 2 Year Warranty

APPLICATION FIELDS

• Water supply:Filtration and transfer at waterworks,Distribution from waterworks,Pressureboosting in mains,Pressure boosting in high-rise buildings and hotels,Pressure boosting for industrial water supply
• Industry:Pressure boosting,Process water systems,Washing and cleaning systems,Vehicle washing tunnels,Fire fighting systems
• Liquid transfer:Cooling and air-conditioning systems(refrigerants),Boiler feed and condensate systems,Machine tools(cooling lubricants),Aquafarming
• Transfer:Oil and alcohol,Glycol and coolants
• Water treatment:Ultra-filtration systems,Reverse osmosis systems,Softening, ionising, demineralizing systems,Distillation sys tems,Separators,Swimming baths
• Irrigation:Field irrigation(flooding),Sprinkler irrigation,Drip-feed irrigation

ELECTRICAL MOTOR

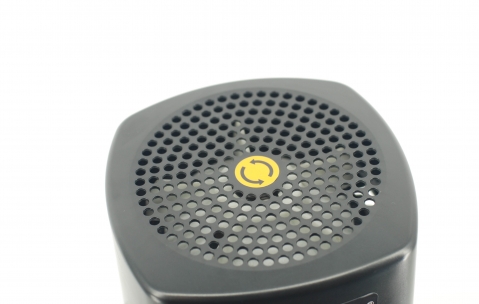

• Full-enclosed and ventilating two-pole standard motor
• Protection class: IP55
• Insulation class: F
• Standard voltage Single phase 220V-50Hz
• Standard motor efficiency: 11kW to 45kW:IE3, other: IE2, specific efficiency value for below table

APPLICATION LIMITS

• Medium temperature: normal type: 0℃~68℃ hot water type: 0℃~120℃
• Ambient temperature: +40℃
• Max ambient pressure: 1.0MPa
• Advisable to use motor of higher power in case that the density or viscosity of medium is above that of water
• pH: 5 to 8

MAXIMUM AMBIENT TEMPERATURE

• When the pump is operating in the place where ambient temperature is higher than 40℃ or altitude is higher than 1000m, the output power of motor P2 will decrease because of poor cooling caused by low air density. Therefore, in that case, the vertical pump should be equipped with high-power motor.

IN THE BOX

• 1 x Vertical Multi-stage Pump
• 1 x User's Manual
