"SHIMGE" is specialising in manufacturing water pumps for 30 years, and it is one of the most famous listed companies in China. The annual production of water pumps is more than 1.5 million. To make sure the quality of the products, SHIMGE has currently passed ISO9001, ISO14001 and OHSAS18001 certification, introduced excellent performance management in line with GB/T 19580 and established a sound quality assurance system. SHIMGE has equipped an industry-leading physiochemical testing centre, and its delivery performance inspection platform has reached a precision of grade B (grade 1) in the evaluation conducted by an authoritative agency. In addition, its products have passed GS, CE and UL certification , and met the specifications of the RoHS Directive.

SHIMGE has become one of the top brands in the world, unparalleled quality and comparable to Grundfos & Will.

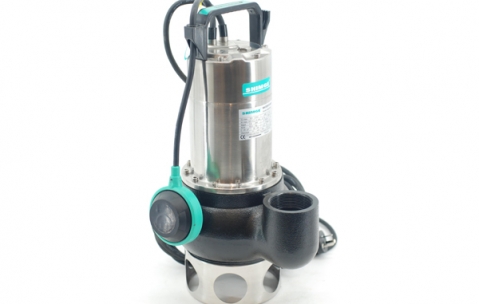

With small size and light weight, the WSD(50Hz) series pump is especially suitable for the rural wells water pumping, farmland irrigation and drainage, garden watering, water spraying and family households, as well as other applications such as industrial, construction, aquaculture, fish ponds, etc..

FEATURES

• External components of SS304 corrosion-resistant material

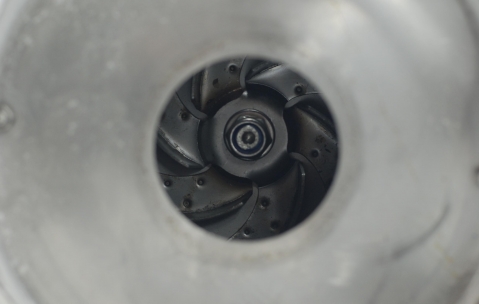

• Whirlpool impeller with larger passage of suspended solid

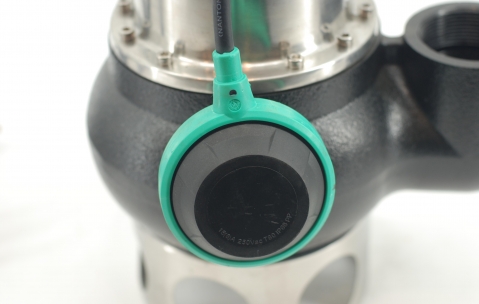

• Automatic operation with a floating switch
• Allows fluid temperature up to 40°C
• Small size and light weight
• Easy to operate and maintenance

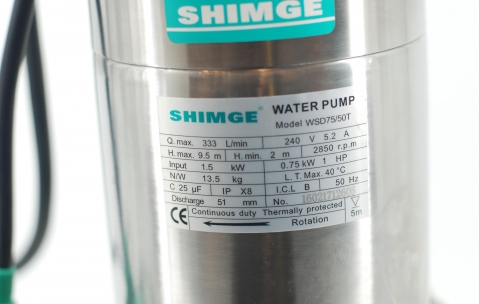

• Max head: 9.5 m
• Max Flow: 333 L/min
• Power: 0.75 kw
• Suitable for rural wells water pumping, farmland irrigation and drainage, garden watering, water spraying and family households
• Also used for applications such as industrial, construction, aquaculture, fish ponds, etc
• 2 Year Warranty

APPLICATION LIMITS

• Maximum liquid temperature +40℃
• pH level from 4-10
• Passage of suspended solids up to 50mm
• Power frequency is 50Hz. Voltage fluctuation range ±10%

IN THE BOX

• 1 x Submersible Pump
• 1 x User's Manual
