"SHIMGE" is specialising in manufacturing water pumps for 30 years, and it is one of the most famous listed companies in China. The annual production of water pumps is more than 1.5 million. To make sure the quality of the products, SHIMGE has currently passed ISO9001, ISO14001 and OHSAS18001 certification, introduced excellent performance management in line with GB/T 19580 and established a sound quality assurance system. SHIMGE has equipped an industry-leading physiochemical testing centre, and its delivery performance inspection platform has reached a precision of grade B (grade 1) in the evaluation conducted by an authoritative agency. In addition, its products have passed GS, CE and UL certification , and met the specifications of the RoHS Directive.

SHIMGE has become one of the top brands in the world, unparalleled quality and comparable to Grundfos & Will.

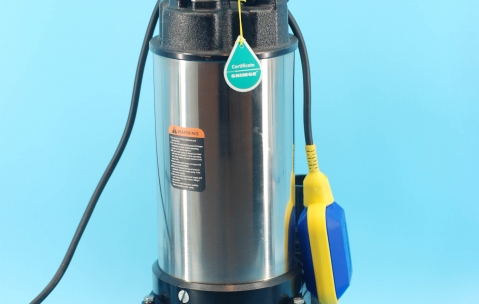

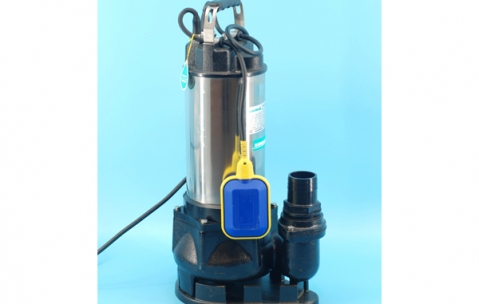

WQDS10-7-0.75 pumps are widely applied in industry, agriculture, mining, construction, municipal, environmental protection, etc. They are suitable for draining water containing particles such as short fibers, paper scraps, etc. and soft solid, such as muddy water, dirty water, domestic wastewater, sewage, manure, etc. They are ideal equipment for agricultural irrigation and drainage, pool silt cleaning and site construction, but do not apply to the location with explosion-proof requirements.

FEATURES

• Stainless steel motor case for beauty and endurability
• Open impeller for easier passage of suspended solid

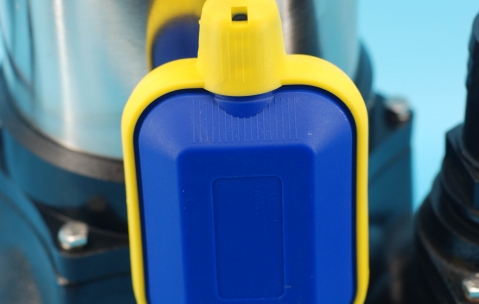

• Automatic operation with a floating switch
• Stainless steel shaft extension, carbide double side mechanical sealing
• Allows fluid temperature up to 40°C
• Max head: 8.5 m
• Max Flow: 350 L/min
• Power: 0.75 kw
• Widely applied in industry, agriculture, mining, construction, municipal, environmental protection, etc
• Suitable for draining water containing particles such as short fibers, paper scraps, etc. and soft solid, such as muddy water, dirty water, domestic wastewater, sewage, manure, etc
• 2 Year Warranty

APPLICATION LIMITS

• Maximum liquid temperature +40℃
• pH level from 4-10
• Maximum liquid density 1200kg/m3
• Power frequency is 50Hz. Nominal voltage is 220VAC for single phase and 380VAC for three phase with tolerance of ±10%
• Immersion depth from 0.5m-5m

IN THE BOX

• 1 x Submersible Pump
• 1 x User's Manual
