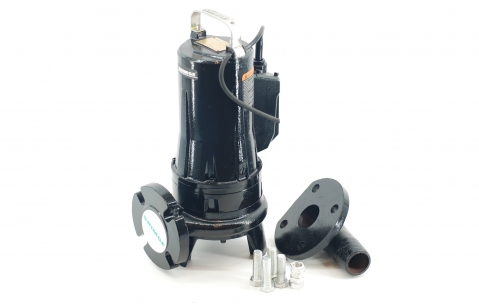

Shimge 50WQD7-7-0.75QG Cast Iron Sewage Cutter/Shredder Pump for Dirty Water (Three phase)

$569.00
Brand Shimge
Model 50WQD7-7-0.75QG (3 phase)
Availability In Stock
General information

 Description

"SHIMGE" is specialising in manufacturing water pumps for 30 years, and it is one of the most famous listed companies in China. The annual production of water pumps is more than 1.5 million. To make sure the quality of the products, SHIMGE has currently passed ISO9001, ISO14001 and OHSAS18001 certification, introduced excellent performance management in line with GB/T 19580 and established a sound quality assurance system. SHIMGE has equipped an industry-leading physiochemical testing centre, and its delivery performance inspection platform has reached a precision of grade B (grade 1) in the evaluation conducted by an authoritative agency. In addition, its products have passed GS, CE and UL certification , and met the specifications of the RoHS Directive.

SHIMGE has become one of the top brands in the world, unparalleled quality and comparable to Grundfos & Will.

Shimge submersible pump 50WQD7-7-0.75QG is suitable for pumping domestic wastewater, draining industrial wastewater, digester sewage, aquaculture sewage, etc...

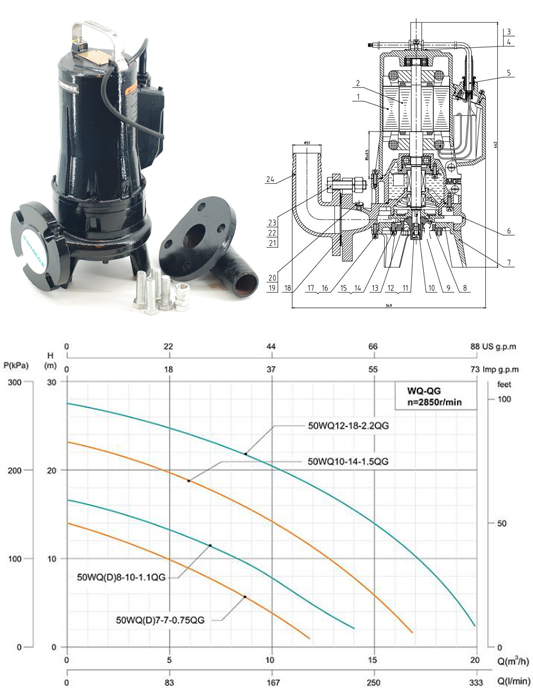

OVERVIEW 50WQD2

FEATURES

  • Cast iron pump body and motor bracket
  • Wear-resisting material QT450-10 for the half-opening impeller

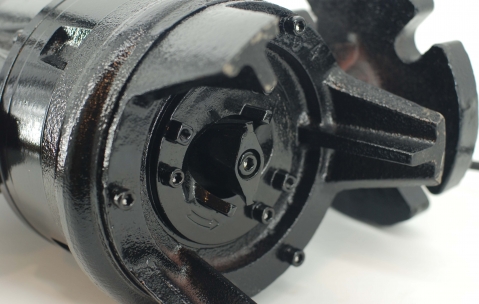

  • With 95 cr18 (SUS440C) cutting knife
  • Stainless steel shaft extension, carbide double side mechanical sealing
  • Allows fluid temperature up to 40°C
  • Max head: 13.5 m
  • Max Flow: 183 L/min
  • Power: 0.75 kw
  • Phase: 3 phase
  • Suitable for pumping domestic wastewater, draining industrial wastewater, digester sewage, aquaculture sewage, etc
  • Cutting knife for cutting large particles
  • 2 Year Warranty



APPLICATION LIMITS

  • Maximum liquid temperature +40℃
  • pH level from 4-10
  • Maximum liquid density 1200kg/m3
  • Power frequency is 50Hz. Nominal voltage is 220VAC for single phase and 415VAC for three phase with tolerance of ±10%
  • Immersion depth from 0.5m-5m



IN THE BOX

  • 1 x Submersible Pump
  • 1 x User's Manual



Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Manufacturer
    Shimge
  • Pump body and motor bracket
    Cast iron
  • Liquid temperature
    up to +40 °C
  • Maximum head
    13.5 m
  • Maximum flow
    183 L/Min
  • Power:
    0.75 kw
  • Maximum submersible depth
    5 m
  • IP class
    X8
  • Voltage
    240V / 50Hz
  • Impeller material
    Wear-resisting material QT450-10
  • Cutting knife material
    95 cr18 (SUS440C)
  • pH
    4 - 10
  • Phase
    3
  • Warranty
    2 years
