"SHIMGE" is specialising in manufacturing water pumps for 30 years, and it is one of the most famous listed companies in China. The annual production of water pumps is more than 1.5 million. To make sure the quality of the products, SHIMGE has currently passed ISO9001, ISO14001 and OHSAS18001 certification, introduced excellent performance management in line with GB/T 19580 and established a sound quality assurance system. SHIMGE has equipped an industry-leading physiochemical testing centre, and its delivery performance inspection platform has reached a precision of grade B (grade 1) in the evaluation conducted by an authoritative agency. In addition, its products have passed GS, CE and UL certification , and met the specifications of the RoHS Directive.

SHIMGE has become one of the top brands in the world, unparalleled quality and comparable to Grundfos & Will.

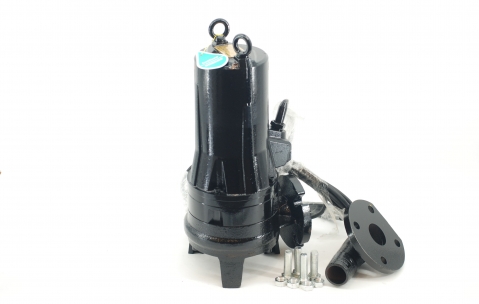

Shimge submersible pump 50WQ10-14-1.5QG is suitable for pumping domestic wastewater, draining industrial wastewater, digester sewage, aquaculture sewage, etc...

FEATURES

• Cast iron pump body and motor bracket
• Wear-resisting material QT450-10 for the half-opening impeller
• With 95 cr18 (SUS440C) cutting knife
• Stainless steel shaft extension, carbide double side mechanical sealing
• Allows fluid temperature up to 40°C
• Max head: 21.5 m
• Max Flow: 275 L/min
• Power: 1.5 kw
• Suitable for pumping domestic wastewater, draining industrial wastewater, digester sewage, aquaculture sewage, etc

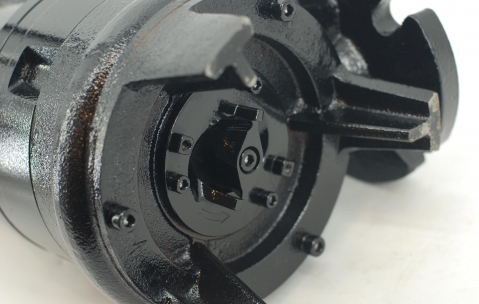

• Cutting knife for cutting large particles
• 2 Year Warranty

APPLICATION LIMITS

• Maximum liquid temperature +40℃
• pH level from 4-10
• Maximum liquid density 1200kg/m3
• Power frequency is 50Hz. Nominal voltage is 220VAC for single phase and 415VAC for three phase with tolerance of ±10%
• Immersion depth from 0.5m-5m

IN THE BOX

• 1 x Submersible Pump
• 1 x User's Manual
