Shimge ZPS15-9-140 3 Speed Auto-Pressurizing Hot Water Circulation Pump with Flow Control

$108.30
Brand Shimge
Model ZPS15-9-140
Availability In Stock
General information



"SHIMGE" is specialising in manufacturing water pumps for 30 years, and it is one of the most famous listed companies in China. The annual production of water pumps is more than 1.5 million. To make sure the quality of the products, SHIMGE has currently passed ISO9001, ISO14001 and OHSAS18001 certification, introduced excellent performance management in line with GB/T 19580 and established a sound quality assurance system. SHIMGE has equipped an industry-leading physiochemical testing centre, and its delivery performance inspection platform has reached a precision of grade B (grade 1) in the evaluation conducted by an authoritative agency. In addition, its products have passed GS, CE and UL certification , and met the specifications of the RoHS Directive.



SHIMGE has become one of the top brands in the world, unparalleled quality and comparable to Grundfos & Will.



Pumps with bronze or stainless steel housings are also suitable for use in hot water service systems.



Examples of typical applications are mix water underfloor heating system, air energy hot water circulation system, solar hot water circulation system, etc.



FEATURES

  • 3 speed adjustment
  • Automatic mode and manual model are available
  • Brass automatic flow control
  • 100% Duty cycle - designed for continuous operation
  • In-line booster pump for pressure boosting
  • Allows fluid temperature up to 110°C
  • Low Noise
  • No Leakage
  • Power: 120w (speed 3); 85w (speed 2); 60w (speed 1)
  • 9m max head, Up to 27L/min
  • 220V / 50Hz
  • Suitable for solar hot water system, Industrial circulation systems, cold water cooling systems and air-conditioning systems
  • 2 Year Warranty

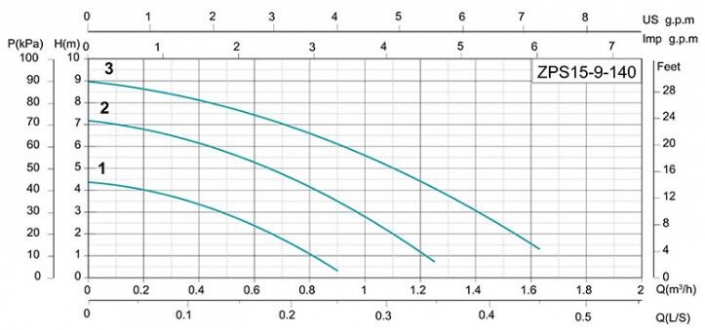

 performance figure3

APPLICATIONS

The ZPS automatic pressurizing pump is suitable for automatic pressurization of domestic tap water, solar system pressurization, hot or cold water pipeline pressurization etc..



MOTOR

  • Protection level: IP44
  • Voltage/Herz: 220V; 50Hz
  • Insulation class: H
  • Maximum system pressure: 10 bar/ 145 psi
  • Installation: with motor axis horizontal

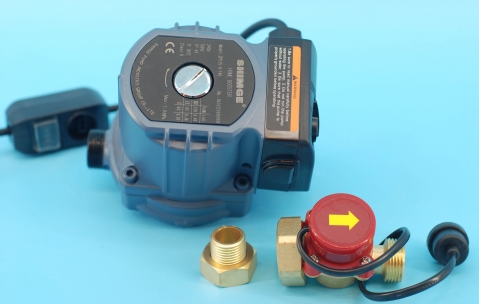

IN THE BOX

  • 1 x Hot Water Pump
  • 2 x Unions & Gaskets
  • 1 x User's Manual

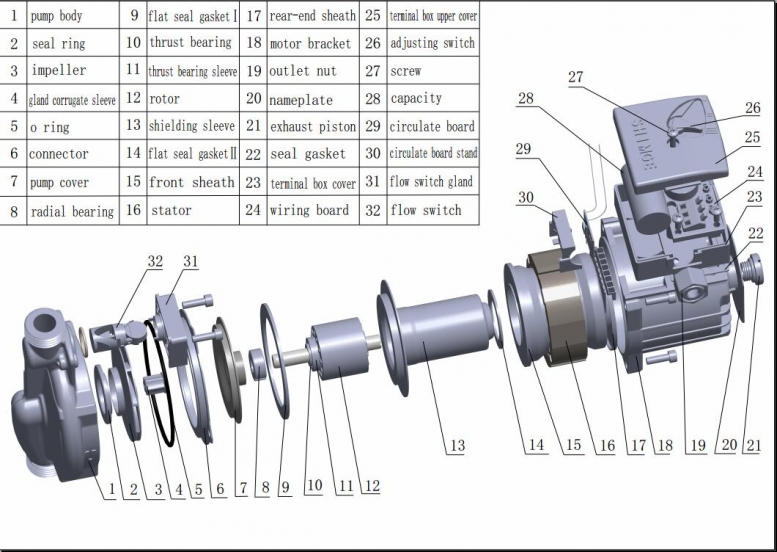

 overview22

Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Manufacturer:
    Shimge
  • Voltage:
    220V / 50Hz
  • Liquid temperature:
    +2°C - +110°C
  • Maximum ambient temperature:
    +40°C
  • Maximum head:
    9m
  • Maximum flow:
    27L/Min
  • Pipe distance:
    140mm
  • Power:
    120w (speed 3); 85w (speed 2); 60 (speed 1)
  • Protection Class:
    IP44
  • Thread Connection Size:
    G3/4" M
  • Insulation class:
    H
  • Installation:
    the motor shaft must be kept in horizontal direction
  • pH:
    6.5 to 8.5
  • Pumped liquid characteristics:
    Clean, free from solids and mineral oils, non-toxic, chemically neutral, close to the characteristics of water
  • Warranty:
    2 Years
