"SHIMGE" is specialising in manufacturing water pumps for 30 years, and it is one of the most famous listed companies in China. The annual production of water pumps is more than 1.5 million. To make sure the quality of the products, SHIMGE has currently passed ISO9001, ISO14001 and OHSAS18001 certification, introduced excellent performance management in line with GB/T 19580 and established a sound quality assurance system. SHIMGE has equipped an industry-leading physiochemical testing centre, and its delivery performance inspection platform has reached a precision of grade B (grade 1) in the evaluation conducted by an authoritative agency. In addition, its products have passed GS, CE and UL certification , and met the specifications of the RoHS Directive.

SHIMGE has become one of the top brands in the world, unparalleled quality and comparable to Grundfos & Will.

FEATURES

• Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water
• Specially designed for view of the hot water circulation
• High quality mechanical seal, NSK bearing, improve the reliability of the product
• Single phase 220V/50Hz
• Stainless steel impeller, shaft 304, long life service
• Widely used in solar boosting, waterheater boosting, air energy boosting, various corollary equipment, etc
• Power: 550w

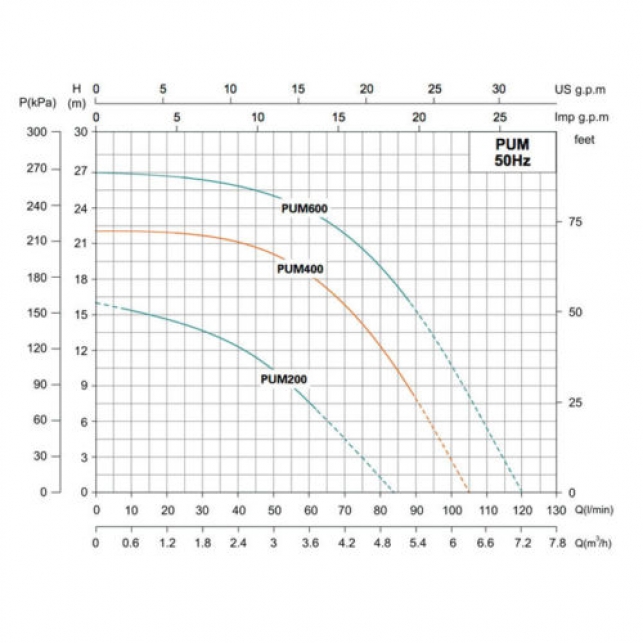

• Max Head: 22m
• Max Flow: 105l/min
• 2 Year Warranty

APPLICATION LIMITS

• Suction head up to 8m
• Liquid temperature up to +90°C
• Ambient temperature up to +40°C
• Max. Working pressure: 3bar
• Voltage fluctuation should not exceed 10% of rated value
• pH: 6.5 to 8.5

MOTOR

• Single-Phase 220V/50Hz

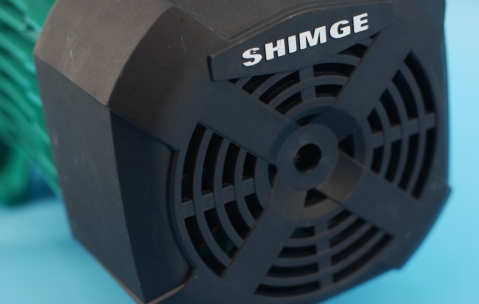

• Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
• Protection: IP44
• Insulation: F

IN THE BOX

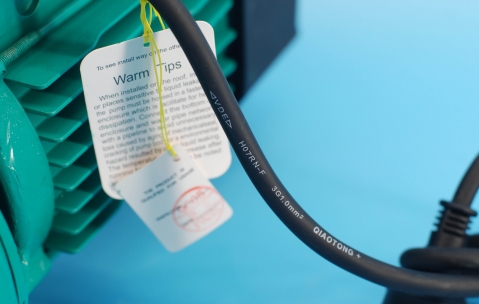

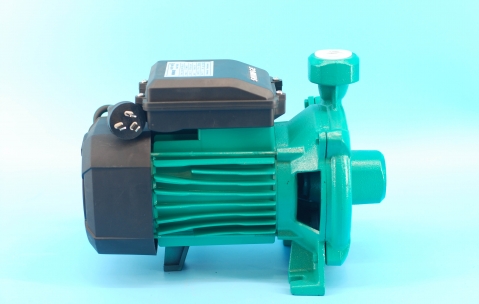

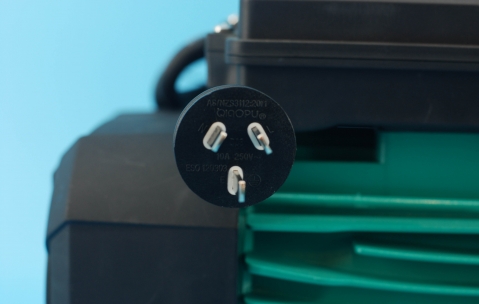

• 1 x Shimge PUM Centrifugal Pump with power cable
• 1 x Warranty Card
• 1 x User's Manual
