"SHIMGE" is specialising in manufacturing water pumps for 30 years, and it is one of the most famous listed companies in China. The annual production of water pumps is more than 1.5 million. To make sure the quality of the products, SHIMGE has currently passed ISO9001, ISO14001 and OHSAS18001 certification, introduced excellent performance management in line with GB/T 19580 and established a sound quality assurance system. SHIMGE has equipped an industry-leading physiochemical testing centre, and its delivery performance inspection platform has reached a precision of grade B (grade 1) in the evaluation conducted by an authoritative agency. In addition, its products have passed GS, CE and UL certification , and met the specifications of the RoHS Directive.

SHIMGE has become one of the top brands in the world, unparalleled quality and comparable to Grundfos & Will.

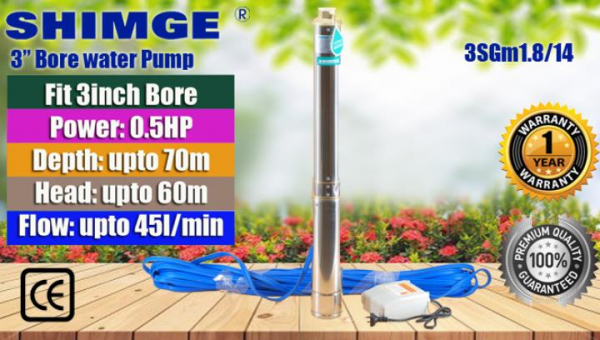

The Shimge deep well pump is sturdy and reliable wherever you go, it comes in with a stainless steel body that ensures durability in most conditions. With its simple yet functional design you’re assured this pump will get the job done. Rated with an IP 68, the pump has total protection against dust coming into your water, acting as an extra filter. Bring efficiency to your garden or farm with this reliable pump.

FEATURES

• Stainless Steel Body
• Edible oil filled motor, stable& reliable running with pressure regulating membrane
• Single phase motor with built in B Grade oil proofed capacitor and thermal mode protector
• Available with cable with a motor plug, disassemble conveniently
• Available with pump casing with plug, 2~8 m3/hrs series with single stage floating impellers, 10~16m3/hrs series with integrated stage floating impellers
• Power: 0.5HP, 0.37KW
• Max Head: 60m
• Max Flow: 45l/min
• Max Depth: 70m
• 1 Year Warranty

APPLICATION FIELDS

• Building/construction work/domestic water supply
• Irrigation and small water work
• Landscaping
• Water conservancy system
• Farm
• Factory

APPLICATION LIMITS

• Max. ambient temperature +40℃
• hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L
• Maximum: 70m below the static water table
• pH 6.5 to 8.5

IN THE BOX

• 1 x Deep Well Pump
• 1 x User's Manual
