Rijing brand pumps dedicates to provide high technology, high quality, high efficiency, energy saving and innovative products and service based on the Japanese Technology and 'Lean Management', providing complete solution for city construction, agricultural irrigation, living water supply, gardening spraying and industrial water supply and etc.

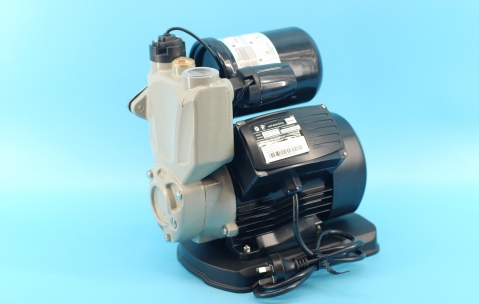

This JLM series of pump is a new type of highly efficient energy-saving household pumps, widely used in domestic household, well, tap water, vegetable garden, irrigation, water supply and water heater.

FEATURES

• Hot and cold water Self-priming pump (0 - 100°C)
• 100% Duty cycle - designed for continuous operation
• Streamlined design, release dynamic charm, with strong dynamic
• Highly efficient energy-saving household pumps
• Ingenious structure - Slough off a piece design, beautiful appearance, small size does not occupy a space, high efficiency and low noise
• Delayed Start - When power on, pump will delay the 3S to start, in order to protect the motor and personal safety
• Power: 600w
• 220V / 50Hz
• Max Head: 40m
• Max Flow: 50l/min
• 2 Year Warranty

WORKING CONDITIONS

• JLM type transmission medium temperature of not more than 0 - 100°C
• Medium PH value between 6.5 - 8.5
• The solid impurities in the volume ration no more than 0.1%, particle size less than 0.2mm
• The power frequency is 50Hz, voltage of single-phase AC220V, 380V three-phase AC. Voltage fluctuation range of 0.9-1.1 times the rated value
• When the temperature is below 0°C, should make anti freezing, when the pump is not use, open the waterproof screw on bottom of the pump body,drain water, in order to avoid cracking of pump body

OTHER FEATURES

• No water no power
• Water stop pump stop
• Flow control
• Machine lock protection
• Overload protection

IN THE BOX

• 1 x Rijing Hot and Cold Self-priming Pump

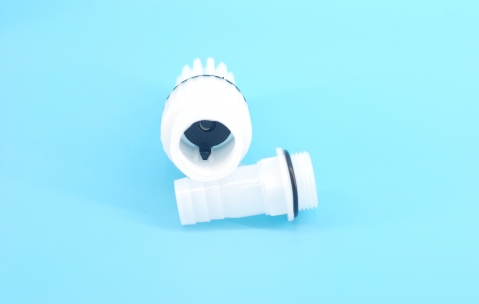

• 1 x Foot Valve
• 1 x User's Manual
