Description (e-HME - Horizontal multistage pumps)

This robust line of smart pumps combines stateof-the-art hydraulics with best-in-class efficiency for the lowest possible operating costs.

Five ranges offer flexibility for a wide range of applications.

They include residential and commercial pressure boosting, industrial and HVAC, and irrigation.

Note: HME models include presure transducer, 5 way tee with inbuilt check valve, pressure gauge and 3L pressure tank

Applications

• Water boosting supply systems in residential buildings and homes

• Irrigation small to medium

• Light industrial

• Air conditioning

• Water treatment plants

Features & Benefits

• IES2 drive with permanent magnet motor for top efficiency

• More compact than the fixed-speed version, meeting the same duty points with precision and consistency

• Thick stainless steel casing, high-quality bearings, and stainless steel inner components minimize noise and guarantee long service life

• Certified for drinking water use (WRAS and ACS)

• Options include AISI 304 or 316 pump body and inner components, electropolished and passivated, and mechanical seal or O-rings

• 14% smaller in size

• Harmonic Filters built in

• Electromagnetic Filters built in

• Intuitive interface and integrated control panel

• Low operating costs

• Easy to Install

• Reduced mechanical stress and wear

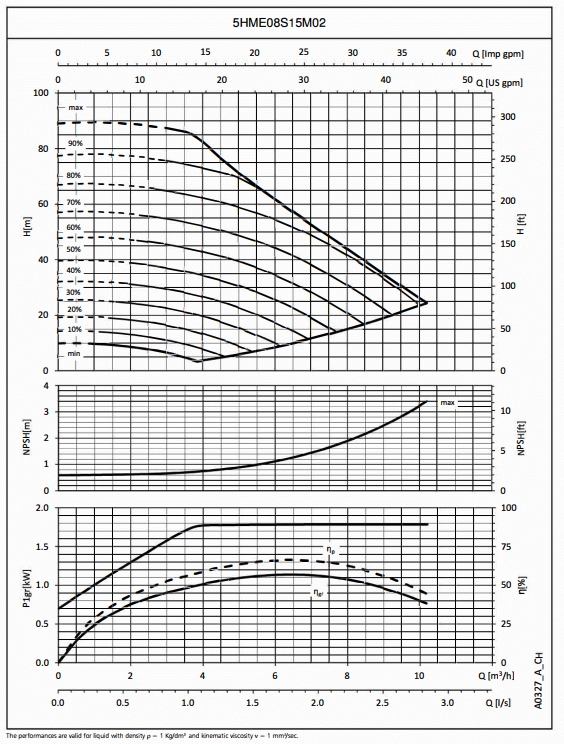

Performance Curve

Operating Characteristics

Smart Pump Range

Smart pumps are not only smart. They are smooth. They operate steadily in partial loads, which prevents the water hammer that is normally associated with full speed pumps.

What's more, their accurate speed control during operation and their smooth start-up reduce mechanical stress and wear.

Available in single phase from 0.37 to 1.5kW, smart pumps are easy to commission, set up and opearte using the simple start-up menu.

Parameters and alarms appear on an easy to read display designed to provide complete control of system operation. They are easy to program too, with just three keypad touches.

Each smart pump features an IE5 motor for best in class efficiency and enhanced hydraulic performance.

The range has an IP55 enclosure rate, and includes BACnet and Modbus capability for seamless building management system integration in all stand alone configurations.

The drive is suitable for installations from - 20 degree to 50 degree without power derating.

Materials

• 304 Stainless Steel Casing

• 304 Stainless Steel Impellers

• 304 Stainless Steel Diffusers

• Sic/Sic Mechanical Seal

Warranty

2 Year Warranty
