Description
Multi-purpose Vortex Pump - 0.75kW, 415V manual pump
Suitable for pumping clean water or grey water containing some small, soft solids
The vortex, open impeller design is less susceptible to blockages
SR80 Slide Rail Kit suits this model - purchase separately
Applications
Grey water pumping
Sump emptying
Septic effluent disposal
Water transfer
Pumping of light slurries and factory waste
Features & Benefits
Corrosion resistant 304 stainless steel shaft, motor shell and fasteners
Long service life
Open impeller, vortex, centrifugal design
Able to pump soft solids in suspension
Less susceptible to blockage
Double mechanical shaft seal in oil bath with hard faced silicon carbide / ceramic seal on pump side
Added motor protection
Sand slinger lip seal
Added protection
Adaptable to Davey SR80 slide rail kits
Easier installation & removal for service
Corrosive resistant 304 stainless steel motor case
Attractive, lasting appearance
Automatic resetting thermal overload
Protected against overloading
D75VA model fitted with automatic float switch with a present float length
Safe unattended operation
Mounting base fitted
For a firm and stable positioning during installation and operation
HO7RNF oil resistant leads, 10 metres long with bared wire lead ends
Easy to connect to power supply terminations
Longer life in dirty water

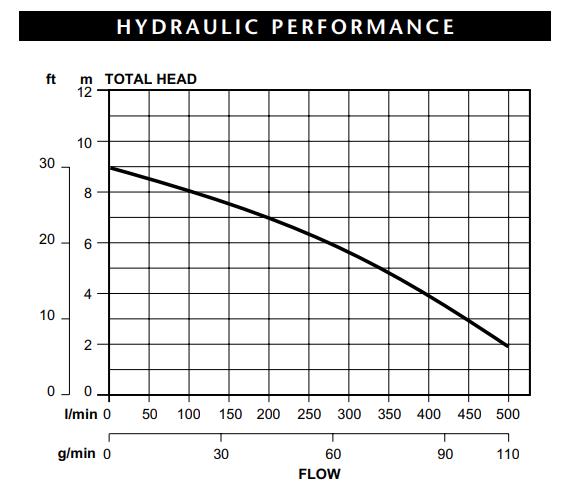

Pump Curve
Documents
