General information
Spec & Features

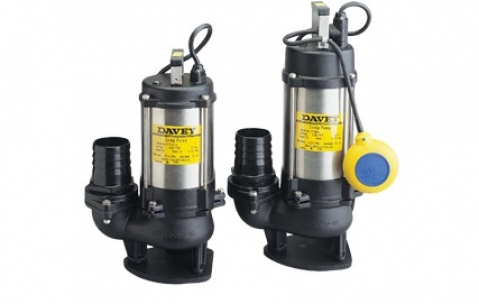

General Purpose Dewatering Pumps:
- Davey dewatering pumps are less susceptible to blockage
- Attractive, lasting appearance with an open impeller, centrifugal design
- Suitable for applications such as moving rainwater, surface water and storm water
- "A" models include auto float switch
Portable electric submersible drainage pumps up to 400W nominal output. Dewatering of cellars, garages, ditches, pits & ponds,Pumping clean or slightly dirty water,Sump emptying, Decorative water features.
Applications
- Dewatering of cellars, garages, ditches, pits & ponds
- Pumping clean or slightly dirty water
- Sump emptying
- Decorative water features
Features & Benefits
- Open impeller, centrifugal design able to pump small soft solids in suspension - Less susceptible to blockage
- Double mechanical shaft seal in oil bath with hard faced silicon carbide / ceramic seal on pump side (D10 & D15 models have single seals) - Added motor protection & long service life
- Sand slinger lip seal - Added protection & long service life
- Corrosive resistant 304 stainless steel motor shell and strainer - Long service life & attractive, lasting appearance
- HO7RNF oil resistant leads, 10 metres long with 3 pin power plug for easy connection to power supply & longer life in dirty water
- High quality paint finish
- Automatic resetting thermal overload to protect motor against overloading
- Suitable Fluids :Sewage or grey water of neutral pH containing up to 10% of small soft organic solids (<10mm OD). Some accelerated wear should be expected while pumping hard solids in suspension.
Pump Range:

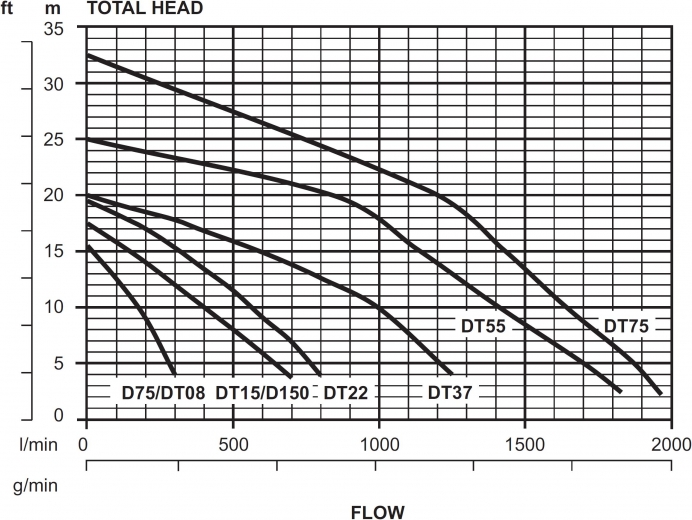

Model Power kW Voltage Outlet D15A 0.15 220/240 1 ¼" D25A 0.25 220/240 1 ¼" D40A 0.4 220/240 2" D40M 0.4 220/240 2" D75A 0.75 220/240 2" D75M 0.75 220/240 2" D150 1.5 220/240 3" DT08 0.75 415 2" DT15 1.5 415 3" DT22 2.2 415 3" DT37 3.7 415 4" DT55 5.5 415 4" DT75 7.5 415 6" Pump Curve
Documents below are available for download
Ask a question- Features and technical specification of the product. Please contact us for further information and specifics.
-
Output power750 w
-
Max. Flow300 lpm
-
Head15m
-
Max. submergence25m
-
Outlet2&quot;
-
Max. operating temperature50°C
-
Warranty2 Years
Davey D75A Automatic General Purpose Dewatering Pump
$1876.00
$1,199.00
| Brand | Davey |
| Model | D75A |
| Availability | In Stock |
