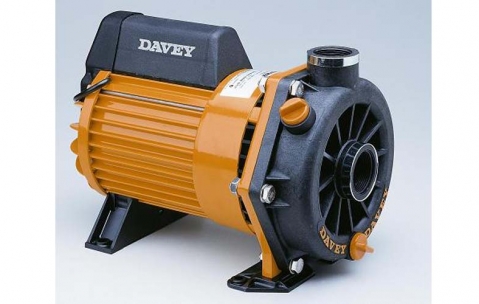

Davey 62101 Dynaflo 6210 Noryl Casing Electric Transfer Pump 1.6Kw

$1594.00 $1,249.00
Brand Davey
Model 62101
Availability In Stock
General information



Designed for water transfer and supply, tank filling, garden reticulation and washdown applications.

Rugged economical single stage centrifugal pumps, designed for total heads to 41m and flows to 460lpm.

The robust motor and pump design can handle frequent starts for a long and reliable service life.



Dynaflo transfer pumps are ideal for pumping clean non-volatile liquids without fibres or solids in such applications as:

  • Hosing down - dairies, factory floors etc.
  • Water supply
  • Water transfer
  • Tank filling
  • Sprinkler supply
  • Garden reticulation



Dynaflo Range:

TypeModelDescriptionP2 kWVoltageInletOutlet
Dynaflo 6200 62001 Nominal duty 2 l/s @22m Noryl Casing 1.0 220/250 1 1/2" 1 1/4"
Dynaflo 6210 62101 Nominal duty 3 l/s @23m Noryl Casing 1.6 220/250 1 1/2" 1 1/4"
Dynaflo 6210 62103 Nominal duty 3 l/s @23m Noryl Casing 1.6 415 1 1/2" 1 1/4"
Dynaflo 6220 62201 Nominal duty 4 l/s @28m Cast Iron Casing 2.4 240/480 2" 1 1/2"
Dynaflo 6220 62203 Nominal duty 4 l/s @28m Cast Iron Casing 2.4 415 2" 1 1/2"
Dynaflo 6230 62303 Nominal duty 6 l/s @34m Cast Iron Casing 3 415 2" 1 1/2"
Dynaflo 6220 62201SS Nominal duty 4 l/s @28m 316SS Casing 2.4 240/480 2" 1 1/2"
Dynaflo 6220 62203SS Nominal duty 4 l/s @28m 316SS Casing 2.4 415 2" 1 1/2"
Dynaflo 6230 62303SS Nominal duty 6 l/s @34m 316SS Casing 3.0 415 2" 1 1/2"

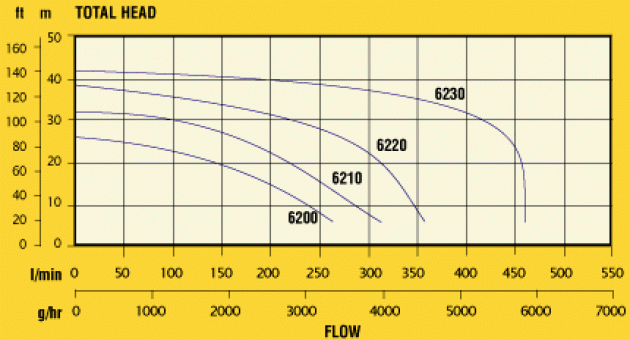

hp dynaflo6200



Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Output Power
    1.6 kW
  • Capacity to
    315 lpm
  • Max. Total Head
    31m
  • Maximum suction head
    7 m
  • Min./Max. Water Temperature
    1 °C/ 50 °C
  • Inlet / Outlet
    1 1/2" F / 1 1/4" F
  • Warranty
    2 Years
