Description

125D 1.4kW single phase Deep Well Jet Pump with 22570 injector - suits 5" wells

Rugged single stage jet assisted pump with unique composite casing, fitted with pressure switch for bores down to 36 metres

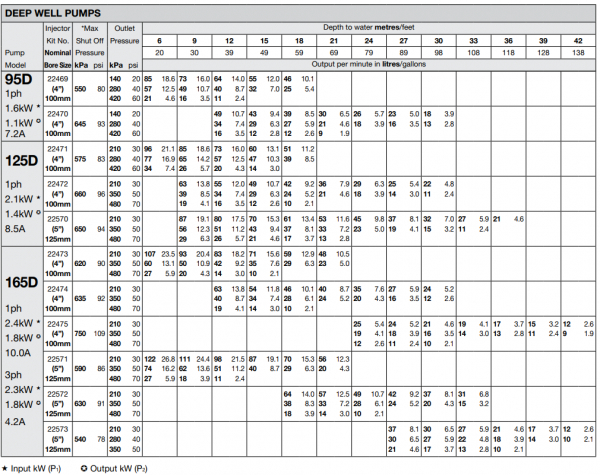

Versatile with venturi options to adjust to required depths and duties up to 87lpm

Suitable for horizontal offset applications and fitted standard with ADR valve to protect against loss of prime from over pumping

APPLICATIONS

Used in conjunction with Deep Well injector kits, these pumps are Ideal for supplying high pressure water from bores to 42m depth for:

• Water supply

• Tank filling

• Stock watering

• Sprinkler supply

Pumps can also be used in applications where pump needs to be horizontally offset from the water supply.

Features & Benefits

High TEFC - IP rating for long term protection against vermin, dust and water

• Manufactured from quality corrosion resistant materials

• Versatile pump - convertible to match different suction lifts

• Easily converted to automatic operation

• Pumping system can be used for ‘offset’ installations

• 165D available with 3 phase motor

• Low maintenance

• Oring seal hand tightened priming plug for easy operation

PUMP

1 Stage (Single Impeller).

Marine grade aluminium pump body with Rilsan® lining.

D.D.R. valve fitted.

Pressure switch fitted.

Pressure gauge supplied.

MOTOR

Davey manufactured.

2 pole, 2900rpm, 50Hz.

Class F insulation, IP56.

Permanently split capacitor design for single phase motors.

Double contact seal C3, high temperature greased bearings.

Inbuilt thermal overload protection with automatic reset in all 1ø models.

Deep Well Jet Pump
