APPLICATION

Ideal for pumping water containing solids in suspension, such as effluent water, dairy or piggery waste, liquid food transfer, bentonite sludge and sawdust muds.

FEATURES & BENEFITS

MUKMOVA

• Semi vortex open vane impeller

• Solid cast iron casing and impeller

• Mechanical seal is grease packed with grease nipple

• Inspection cover held by two wing nuts

• Choice of 240 / 480 volt single phase and 415 volt three phase, 50Hz models

• Single phase models are capacitor start/capacitor run design

• Automatic resetting motor overload in all single phase models

• Oversized motor used, with ample power reserve

• Davey manufactured TEFC, IP56 motor

JUMBO MUKMOVA

• Robust cast iron casing with thick walls for longer pump life

• Open impeller design allows for high solids passage (up to 25x40mm) with little chance of blockage

• Internal armoured volute plate made of nodular cast iron to resist the abrasive and corrosive action of liquids even with solids in suspension

• The armoured volute plate is fixed to the casing without screws for fast and easy removal

• Self-priming action allows the pump to prime without the need to fill the pipe and to be operated without a foot value to reduce the risk of blockages

• Large priming and drain plugs for fast filling and draining of the pump casing

• Comes with companion flanges for easy installation of piping

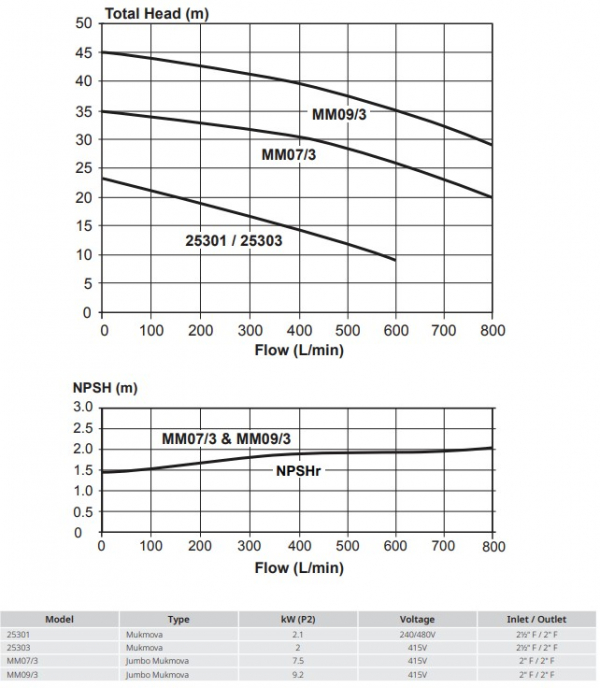

Hydraulic Performance
