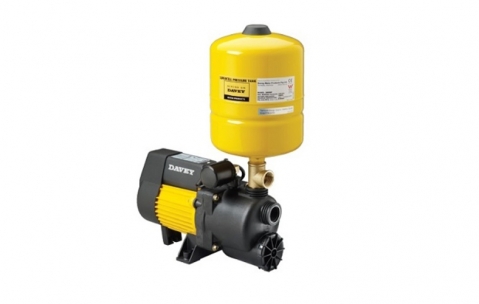

Davey XP45P8 Jet Assisted Centrifugal Pump with Pressure Switch and 8L Pressure Tank

$952.00 $579.00
Brand Davey
Model XP45P8
Availability In Stock
General information

Davey Pump Guide



Davey XP jet pressure system with Torrium controller.  Provides constant water pressure in small homes when sourcing water from an underground or partially buried tank.

Also available with a pressure switch and SuperCell pressure tank.



Features:

  • Robust And compact
  • Single stage jet assisted pump with Torrium2 constant flow control and loss of prime device for automatic water pressure.
  • Suitable for use on small to average sized single storey homes

Ideal for pumping clean, non-volatile liquids without fibres or solids in such applications as:

  • Household water supply
  • Irrigation
  • Water transfer
  • Washing systems
  • Pressure boosting



TypeDescriptionFlow RatekW(P2)InletOutlet
XP25P8 XP jet assisted centrifugal pump with pressure switch and 8L pressure tank 25 lpm 0.31 1" F 1" F
XP35P8 XP jet assisted centrifugal pump with pressure switch and 8L pressure tank 35 lpm 0.45 1" F 1" F
XP45P8 XP jet assisted centrifugal pump with pressure switch and 8L pressure tank 45 lpm 0.45 1" F 1" F
XP45T XP jet assisted centrifugal pump with Torrium controller (XP450T) 45 lpm 0.45 1" F 1" F















DOCUMENTS
Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Supply Voltage
    220-240V
  • Output power
    0.45kW
  • Full load current
    3.0 amps
  • Enclosure class
    IP55
  • Pressure switch cut-in
    140kPa
  • Capacities to
    45 lpm @ 140kPa
  • Max. total head
    32m
  • Max. suction lift
    6m
