Davey XJ70T Jet Assisted Pressure Pump with Torrium2

$1572.00 $969.00
Brand Davey
Model XJ70T
Availability In Stock
General information



Dynajet XJ pumps are an ideal home pressure system to use when drawing water from a level that is below the pump such as in a buried or partially buried tank. There are 3 models available to suit medium to large homes.



Combine with the Davey Torrium pressure controller for constant water pressure or with pressure switch for simple on/off operation.



Dynajet XJ pumps are economical, compact 50, 70 and 90lpm single stage jet assisted centrifugal pumps.

  • Ideal for average homes with modern appliances to large double story homes
  • Domestic water supply
  • Pressure boosting
  • Automatic water transfer
  • As well as for domestic irrigation from shallow wells or sand spears
  • Overhead or high tank filling
  • Pressure boosting
  • Water transfer
TypeDescriptionkW(P2)InletOutlet
XJ50T XJ50 jet pump with TT45 Torrium controller 0.58 1" 1"
XJ70T XJ70 jet pump with TT70 Torrium controller 0.80 1" 1"
XJ90T XJ90 jet pump with TT45 Torrium controller 1.10 1 ¼” 1"
XJ50P XJ50 jet pump with pressure switch (previously 72511) 0.58 1" 1"
XJ70P XJ70 jet pump with pressure switch (previously 72711) 0.80 1" 1"
XJ90P XJ90 jet pump with pressure switch (previously 72911) 1.10 1 ¼” 1"

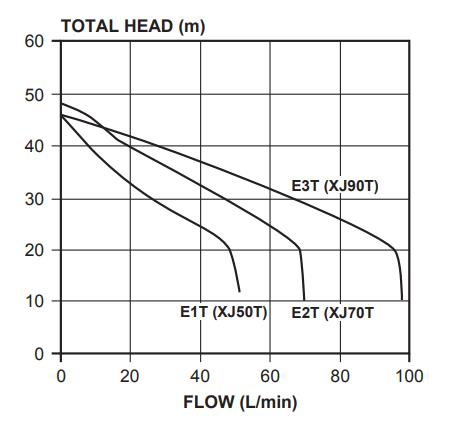

Pump Curve

 curve138



Documents below are available for download

Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Output power
    0.8 kW
  • Inlet/Outlet
    1" F / 1" M
  • Max. Flow
    70 lpm
  • Max. Pressure
    480 kPa
  • Torrium2
    TT70
  • Max. Suction Head
    7m
  • Torrium®2
    cut-in pressure is normally 80% of the pumps last shut-off head
  • AS/NZS 4020
    For use in contact with safe drinking water
  • Warranty
    2 Years
