Petrol Driven Firefighter Pumps
Yellow casing - single stage pumps,
Red casing - twin stage pumps. Available with your choice of Honda or Briggs & Stratton engines.
Rugged, economical single and twin stage self priming fire pumps. Solid, class leading performance, Australian designed and made, no.1 in Australia and sold worldwide.
These units are driven by either a Honda or Briggs & Stratton Engine and available with 3 or 4 outlets in most models:
- 5.5 Honda GX160 engine
- 6.5 Honda GX200 engine. The GX200 engine is also available in electric start.
- 9.0 Honda GX270 engine - electric start
- 13.0 Honda GX390 engine - electric start
- 6.5 Briggs & Stratton Vanguard engine
- 10.0 Briggs & Stratton Vanguard engine - electric start
- 13.0 Briggs & Stratton 2100 Series engine - electric start
Davey Firefighter pumps also have the flexibility to draw from a shallow or deep well when power is not available - jet kit is an optional extra and sold separately.APPLICATIONS:
- Firefighting
- Tanker to tanker water transfer
- High head general water transfer
- Sheep jetting
- Irrigation
- Boom spraying
Selection Guide
Pump Curve
Pumps Range
Type - Single Stage Type - Twin Stage Engine Capacity (CC) Description 5155H 5255H 163 Honda GX160 with 4 way outlet 5155H23W 5255H23W 163 Honda GX160 with 3 way outlet 5165H 5265H 196 Honda GX200 with 4 way outlet 5165HV13W 5265HV13W 196 Honda GX200 with 3 way outlet and viton seals 5165H23W 5265H23W 196 Honda GX200 with 3 way outlet 5165HV3 5265HV3 196 Honda GX200 with 3 way outlet and viton seals 5165HE 5265HE 196 Honda GX200 with 3 way outlet, electric start 5190HE 5290HE 270 Honda GX270 with 3 way outlet, electric start 5113HE 5213HE 389 Honda GX390 with 3 way outlet, electric start 5165B 5265B 205 Briggs & Stratton Vanguard with 4 way outlet N/A 5210BE 296 Briggs & Stratton Vanguard with 3 way outlet, electric start N/A 5213BE 391 Briggs & Stratton Intek with 3 way outlet, electric start Documents below are available for download
Ask a question- Features and technical specification of the product. Please contact us for further information and specifics.
-
Flow capacities to500 lpm
-
Maximum total head61m
-
Maximum suction lift7m
-
Maximum water temperature50ºC
-
Displacement (cc)196
-
Fuel tank (litres)3.6L
-
Approximate fuel consumption @ full load @ 3600 rpm2.05 l/hr
-
Inlet / Outlet1½” / 1½” (4 Way)
-
1 Year Warranty ForWet end, Yanmar engines and accessories
-
3 Years Warranty ForHonda engines

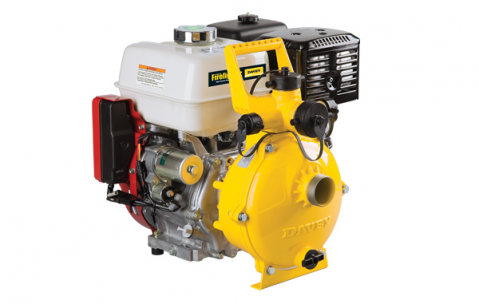

Davey 5165HE Single Impeller Firefighter with Honda GX200 6.5HP Electric Start
$2874.00
$2,099.00
