Description
Grinder Pump
Max head 16.9m, max flow 240 L/m, 1-1/2 inch BSPF
Features
High resistance stainless steel grinder system
Suitable for the transfer of sewage water at high pressure or when narrow piping is needed to keep down system installation costs
Single-phase versions with starter and capacitor in a separate panel
Double silicon carbide mechanical seals are entirely enclosed in the oil chamber to avoid direct contact with the pumped liquid.
Motor shaft in anticorrosion stainless steel AISI 304
External cataphoresis and two component coating for corrosion resistance
Resin sealed cable gland
Compliant with waste water standards EN 12050
Pump body and impeller in cast iron, shredder in AISI 630
Threaded and flanged outlet

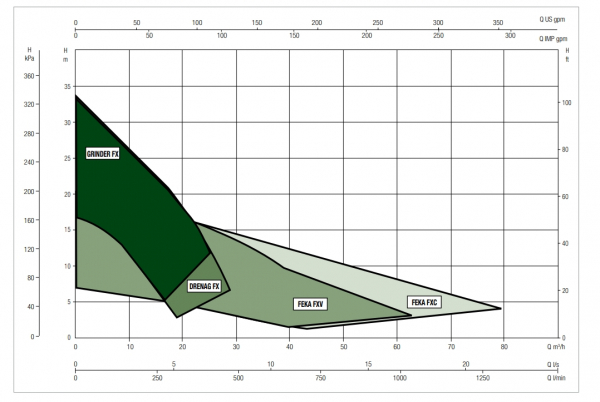

Performance Range

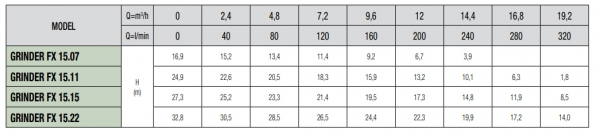

Selection Table Grinder FX 15

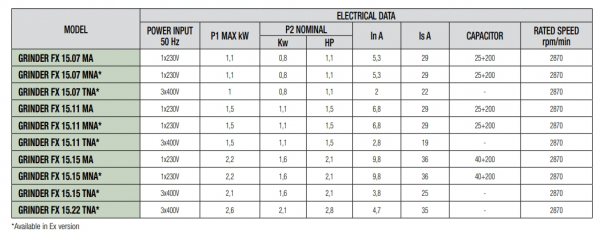

Electrical Data
Warranty
2 Year Pump Parts and Labour Warranty
Documents
