Description

DAB Heavy Duty Stainless Steel Vortex Pumps

Submersible centrifugal pump with liquid vortex cast steel impeller (technopolymer impeller for Feka VX), suitable for pumping sewer water and waste water in general containing solids up to a maximum size of 50 mm. Handle with insulating rubber cover. AISI 316 stainless steel drive shaft. Double mechanical seal with intermediate oil chamber (atoxic oil), in carbon/alumina on the motor side and silicon carbide/silicon carbide on the pump side.

0.55kW, 0.75hp, 240V, max hd 7.4m, max flow 330L/m, 2" BSPF outlet. Particle size 50mm.

Features

• Stainless Steel submersible centrifugal pump with microcasted steel vortex impeller. Suitable for lifting sewage and general drainage applications containing solids up to 50mm in diameter.

• Equipped with float switch for automatic operation.

• Equipped with power cable with plug.

• Insulated carry handle

• Dual mechanical seals, seal in oil chamber on motor side.

• Suitable for continuous duty with liquid temperature up to 35˚C when pump is completely submerged.

• Overcurrent protection.

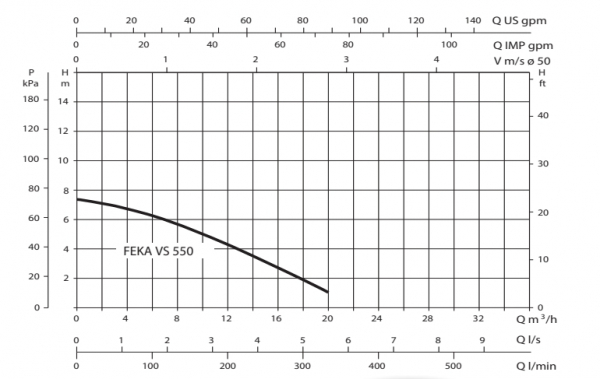

Curve

Warranty

2 Year DAB Pumps Warrranty

Documents

Product Information and Data Sheets

Download Product Information & Data Sheetsv1.0

Spare Parts Information and Exploded Diagrams

Download Spare Parts Information & Exploded Diagramsv1.0

Certificates & Compliance Information

Download Certificates & Compliance Informationv1.0

Download Certificates & Compliance Informationv1.01

Download Certificates & Compliance Informationv1.02
