DAB-JINOX112MP - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 60L/MIN 61M 1.0KW 240V

$999.00
Brand DAB
Model DAB-JINOX112MP
Availability In Stock
General information

Description

DAB Pressure Pumps with Mechanical Switch

Suitable for domestic use for water supply and pressurisation, irrigation of gardens and moving water in general.

Includes non-return valve.

DAB Jet pumps are renowned for their unique self priming and extraordinary deep suction capability up to 9 meters at sea level.

All pressure switch controlled pumps must use a pressure tank (refer to Reflex pressure tanks).

1.0kW, 1.36hp, 240V, max hd 61m, max flow 60L/m, 6 taps Ports 1” BSPF In, 1” BSPF Out. Includes NRV.



Features

Self Priming Stainless Steel Jet Pressure Pumps

Pressure tank sold separately

2 Year DAB Pumps Warranty

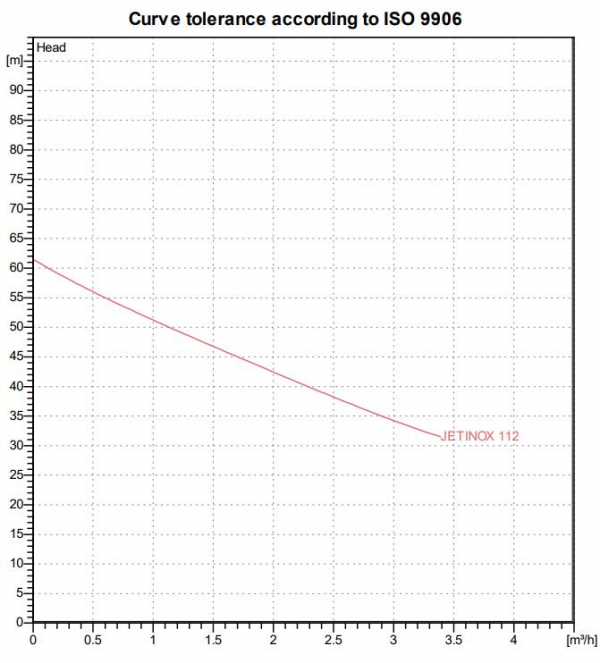

Performance

curve98



Downloads

Product Information and Data Sheets
Download Product Information & Data Sheetsv1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagramsv1.0
Download Spare Parts Information & Exploded Diagramsv1.01
Download Spare Parts Information & Exploded Diagramsv1.02
Operation and Installation Manuals
Download Operation & Installation Manualsv1.0
Download Operation & Installation Manualsv1.01
Certificates & Compliance Information
Download Certificates & Compliance Informationv1.0
Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Brand
    DAB Pumps
  • Product Type
    Pressure System
  • Suitable For
    Clean Water
  • Bar
    6.1 Bar
  • Approval
    Approved For Drinking Water
  • Flow Range Category
    a. 0 - 99 L/min
  • Flow Rate (L/min)
    60 L/min
  • Hp
    1.36 Hp
  • kPa
    618 kPa
  • Kilo Watts
    1 kW
  • Head Range Category
    c. 60 - 99 m
  • Max Head (m)
    61 m
  • Port Size Inlet
    1 inch BSPF inlet
  • Port Size Outlet
    1 inch BSPF outlet
  • Powered
    Electric
  • Taps
    6 Taps
  • Warranty (months)
    24 Months
  • Volts
    240 V
  • Watts
    1000 W
