Description
The nXt series of pump controls represents the next step in pressurised pump control.
Designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.

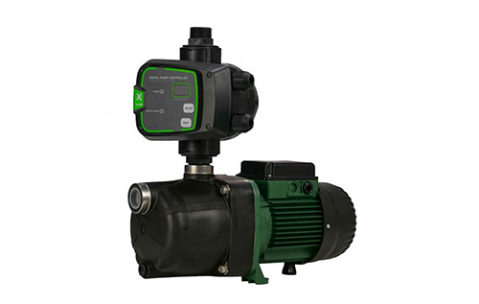

DAB Surface Mounted - Jet Pump with NXT intelligent 1 mode controller
Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.
0.6kW, 0.8hp, 240V, max hd 47m, max flow 60L/m, 6 taps
Ports 1" BSPF In, 1" BSPM Out
Warranty2 Year DAB Pumps Warranty
Ideal for pumps supplying clean, non-volatile liquids without fibers or solids in applications such as:
• Household water supply
• Irrigation
• Water transfer
• Washing systems
• Pressure boosting
FEATURES
• Digital display gives you a real time indication of system pressure
• Anti-cycle Protection
• Dry run protection with auto restart function that tests for water availability every 24hrs
• Anti-seize function if pump has not operated for last 24 hours
• Controller automatically restarts pump after a power failure
• Easy assembly and removal using push-n-connect fitting with U clip
• Complies to AS/NZ 4020 drinking water standard
• Over pressure protection turns pump off when 10 bar is reached
• Overload protection
