Description

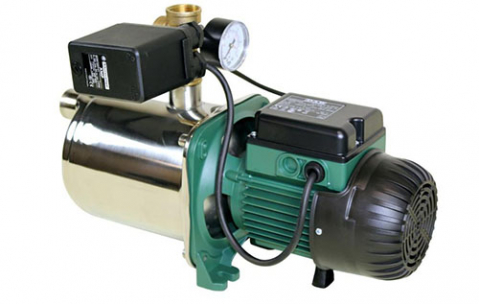

DAB Pressure Pumps with Mechanical Switch

Suitable for domestic use for water supply and pressurisation, irrigation of gardens and moving water in general.

Includes non-return valve.

DAB Jet pumps are renowned for their unique self priming and extraordinary deep suction capability up to 9 meters at sea level.

All pressure switch controlled pumps must use a pressure tank (refer to Reflex pressure tanks).

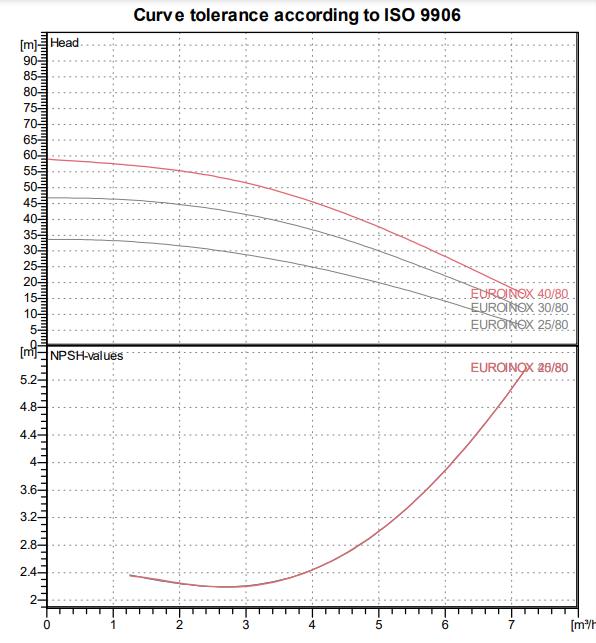

1.0kW, 1.36hp, 240V, max hd 59m, max flow 120L/m, 12 taps. Ports 1” BSPF In, 1” BSPF Out. Includes NRV.

Application

Multi-stage centrifugal pump with horizontal shaft, with excellent suction capacity even in the presence of air bubbles, featuring extremely quiet operation suitable for domestic water supply and pressurisation, irrigation of gardens and general

water movement.

CONSTRUCTIONAL FEATURES OF THE PUMP

Pump body in stainless steel. Motor support in die cast aluminium, with seal holder cover in AISI 304 stainless steel. Carbon/ceramic mechanical seal.

Rotor shaft in AISI 304 stainless steel.

Impeller and diffuser bodies and diffuser in technopolymer.

Stainless steel wear ring.

CONSTRUCTIONAL FEATURES OF THE MOTOR

Asynchronous, continuous service motor.

Incorporated thermo-amperometric protection and permanently inserted capacitor in the single phase version.

Overload protection to be provided by the user for the three-phase version.
