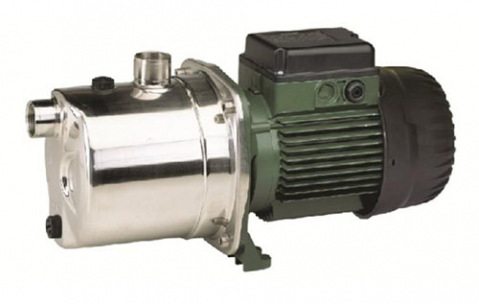

DAB-EUROINOX40/80M - PUMP SURFACE MOUNTED MULTISTAGE 120L/MIN 59M 1.0KW 240V

$1,459.00
Brand DAB
Model DAB-EUROINOX40/80M
Availability In Stock
General information

Description

Suitable for domestic use for water supply and pressurisation, irrigation of gardens and moving water in general.

  • Stainless steel pump casing resists corrosion and water borne bacteria

  • Unique self priming design makes these pumps ideal for long suctions and large homes

  • Emits less noise (When compared to jet pumps), making them ideal for high density urban applications

  • 1.0kW, 1.36hp, 240V, max hd 59m, max flow 120L/m Ports 1” BSPF In, 1” BSPF Out



Application

Multi-stage centrifugal pump with horizontal shaft, with excellent suction capacity even in the presence of air bubbles, featuring extremely quiet operation suitable for domestic water supply and pressurisation, irrigation of gardens and general

water movement.



CONSTRUCTIONAL FEATURES OF THE PUMP

Pump body in stainless steel. Motor support in die cast aluminium, with seal holder cover in AISI 304 stainless steel. Carbon/ceramic mechanical seal.

Rotor shaft in AISI 304 stainless steel.

Impeller and diffuser bodies and diffuser in technopolymer.

Stainless steel wear ring.



CONSTRUCTIONAL FEATURES OF THE MOTOR

Asynchronous, continuous service motor.

Incorporated thermo-amperometric protection and permanently inserted capacitor in the single phase version.

Overload protection to be provided by the user for the three-phase version.



Features

  • Self Priming Stainless Steel Horizontal Multistage Pumps

  • Suitable for domestic use for water supply and pressurisation, irrigation of gardens and moving water in general.

  • 2 Year DAB Pumps Warranty

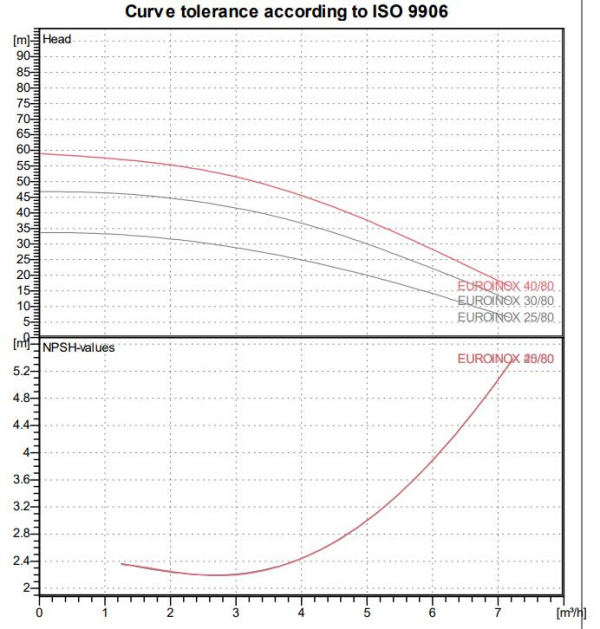

Performance

curve119



Downloads

Product Information and Data Sheets
Download Product Information & Data Sheetsv1.0
Download Product Information & Data Sheetsv1.01
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagramsv1.0
Download Spare Parts Information & Exploded Diagramsv1.01
Download Spare Parts Information & Exploded Diagramsv1.02
Download Spare Parts Information & Exploded Diagramsv1.03
Download Spare Parts Information & Exploded Diagramsv1.04
Download Spare Parts Information & Exploded Diagramsv1.06
Operation and Installation Manuals
Download Operation & Installation Manualsv1.0
Certificates & Compliance Information
Download Certificates & Compliance Informationv1.0
Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Brand
    DAB Pumps
  • Product Type
    Horizontal Multistage Pump
  • Suitable For
    Clean Water
  • Bar
    5.9 Bar
  • Approval
    Approved For Drinking Water
  • Flow Range Category
    b. 100 - 199 L/min
  • Flow Rate (L/min)
    120 L/min
  • Hp
    1.36 Hp
  • kPa
    598 kPa
  • Kilo Watts
    1 kW
  • Head Range Category
    b. 40 - 59 m
  • Max Head (m)
    59 m
  • Port Size Inlet
    1 inch BSPF inlet
  • Port Size Outlet
    1 inch BSPF outlet
  • Powered
    Electric
  • Warranty (months)
    24 Months
  • Volts
    240 V
  • Watts
    1000 W
