Description
Self-Priming Single and Multistage Jet Pressure Pumps
Consructed from high quality cast iron for corrosion resistance and are for high head applications.
Suitable for pumping from rivers, tanks and dams, irrigation and lawn watering applications.
Self priming centrifugal pump with excellent suction capacity even when there are air bubbles.
The pump is a self-priming surface mounted jet pump and has a suction capability of up to 8 m.

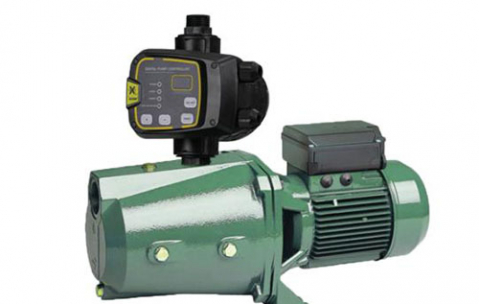

DAB Surface Mounted - Jet Pump with NXT intelligent 2 mode controller
Ideal for medium to large homes. Suitable for high density urban applications and agriculture.
2.2kW, 3.0hp, 240V, max hd 51m, max flow 185L/m, 18 taps. Ports 1½" BSPF In, 1¼" BSPM Out. Controller with fully adjustable cut in pressure 0.5 to 6 bar.
Application
Domestic installations where a suction lift is required
Pressure boosting, irrigation and wash down
Designed for pumping from tanks, rivers and dams.
Features
Run dry protection to prevent pump damage
The nXt controller has an in-built check valve to prevent water back-flow through the pump
Self priming centrifugal pump with excellent suction capabilty
240V single phase TEFC motor with in-built auto reset thermal overload to prevent pump from damage
A pressure tank is recommended
Warranty
2 Years Warranty

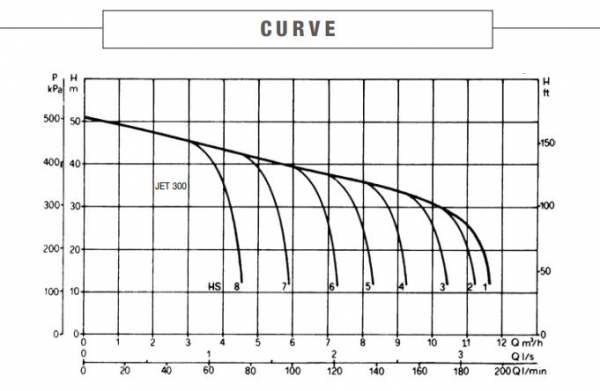

Performance
Downloads
