Description

The nXt series of pump controls represents the next step in pressurised pump control.

Designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven

architecture to guarantee constant supply of pressurised water when and where you need it the most.

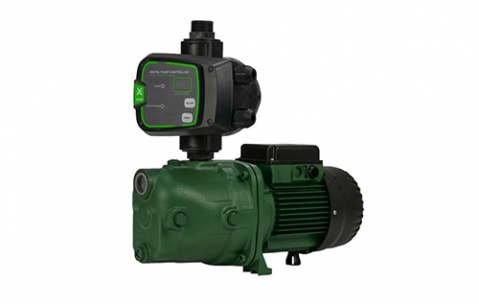

DAB Surface Mounted - Jet Pump

Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.

1.0kW, 1.36hp, 240V, max hd 48m, max flow 80L/m, 8 taps

Ports 1” BSPF In, 1” BSPM Out

Warranty

2 Year DAB Pumps Warranty

Ideal for pumps supplying clean, non-volatile liquids without fibers or solids in applications such as:

• Household water supply

• Irrigation

• Water transfer

• Washing systems

• Pressure boosting

FEATURES

• Digital display gives you a real time indication of system pressure

• Anti-cycle Protection

• Dry run protection with auto restart function that tests for water availability every 24hrs

• Anti-seize function if pump has not operated for last 24 hours

• Controller automatically restarts pump after a power failure

• Easy assembly and removal using push-n-connect fitting with U clip

• Complies to AS/NZ 4020 drinking water standard

• Over pressure protection turns pump off when 10 bar is reached

• Overload protection

Documents:

Product Information and Data Sheets

Download Product Information & Data Sheetsv1.0

Download Product Information & Data Sheetsv1.01

Download Product Information & Data Sheetsv1.02

Spare Parts Information and Exploded Diagrams

Download Spare Parts Information & Exploded Diagramsv1.0

Download Spare Parts Information & Exploded Diagramsv1.01

Download Spare Parts Information & Exploded Diagramsv1.02

Operation and Installation Manuals

Download Operation & Installation Manualsv1.0

Certificates & Compliance Information

Download Certificates & Compliance Informationv1.0

Download Certificates & Compliance Informationv1.01
