DAB-JINOX132M - PUMP SURFACE MOUNTED JET 80L/MIN 48M 1.0KW 240V

$809.00
Brand DAB
Model DAB-JINOX132M
Availability In Stock
General information

Description

  • Suitable for domestic use for water supply and pressurisation, irrigation of gardens and moving water in general.

  • DAB Jet pumps are renowned for their unique self priming and extraordinary deep suction capability up to 9 meters at sea level.

  • Available in technopolymer, cast iron and stainless steel, they are designed to handle abrasive and corrosive water which makes them ideally suited for spear point applications.

  • 1.0kW, 1.36hp, 240V, max hd 48m, max flow 80L/m Ports 1” BSPF In, 1” BSPF Out



Features

  • Self Priming Stainless Steel Jet Pumps

  • Suitable for water supply in domestic installations, small-scale agriculture and gardening.

  • Self priming to 9m at sea level

  • Designed specifically for rainwater tanks, shallow well, spear and boreholes to a maximum depth of 9 metres

  • Ideal for drip irrigation and garden watering

  • Designed for domestic and urban household pressure systems

  • 2m Plug n Play Cable



Warranty

2 Year DAB Pumps Warranty

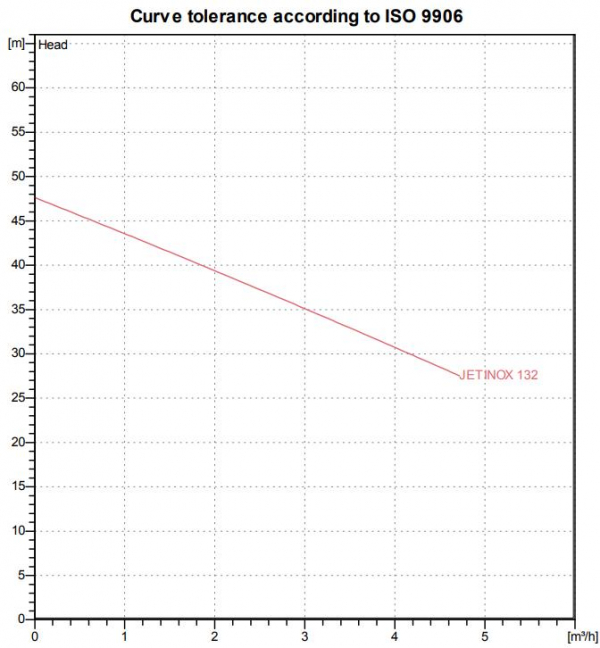

Performance

curve116



Downloads

Product Information and Data Sheets
Download Product Information & Data Sheetsv1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagramsv1.0
Operation and Installation Manuals
Download Operation & Installation Manualsv1.0
Download Operation & Installation Manualsv1.01
Certificates & Compliance Information
Download Certificates & Compliance Informationv1.0
Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Brand
    DAB Pumps
  • Product Type
    Single Stage Jet Pump
  • Suitable For
    Clean Water
  • Bar
    4.8 Bar
  • Approval
    Approved For Drinking Water
  • Flow Range Category
    a. 0 - 99 L/min
  • Flow Rate (L/min)
    80 L/min
  • Hp
    1.36 Hp
  • kPa
    486 kPa
  • Kilo Watts
    1 kW
  • Head Range Category
    b. 40 - 59 m
  • Max Head (m)
    48 m
  • Port Size Inlet
    1 inch BSPF inlet
  • Port Size Outlet
    1 inch BSPF outlet
  • Powered
    Electric
  • Warranty (months)
    24 Months
  • Volts
    240 V
  • Watts
    1000 W
