General information
Description
-
Suitable for domestic use for water supply and pressurisation, irrigation of gardens and moving water in general.
-
DAB Jet pumps are renowned for their unique self priming and extraordinary deep suction capability up to 9 meters at sea level.
-
Available in technopolymer, cast iron and stainless steel, they are designed to handle abrasive and corrosive water which makes them ideally suited for spear point applications.
-
0.75kW, 1.0hp, 240V, max hd 53.8m, max flow 60L/m Ports 1” BSPF In, 1” BSPF Out
Features
-
Self Priming Stainless Steel Jet Pumps
-
Suitable for water supply in domestic installations, small-scale agriculture and gardening.
-
Self priming to 9m at sea level
-
Designed specifically for rainwater tanks, shallow well, spear and boreholes to a maximum depth of 9 metres
-
Ideal for drip irrigation and garden watering
-
Designed for domestic and urban household pressure systems
-
2m Plug n Play Cable
Warranty
2 Year DAB Pumps Warranty

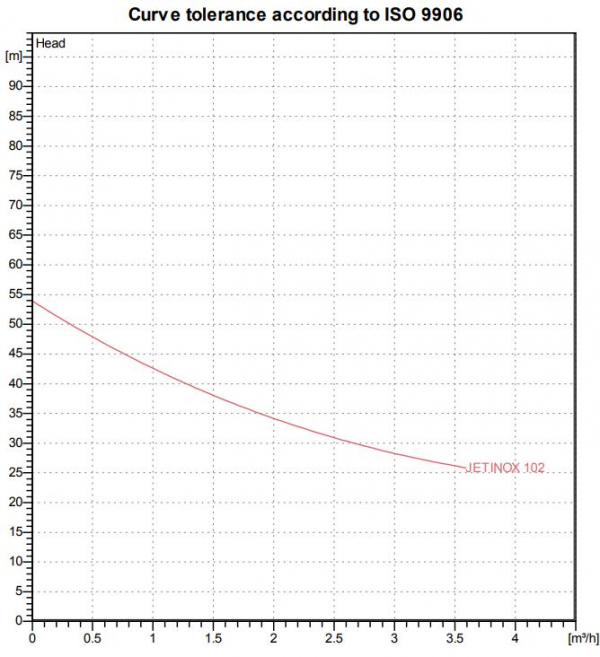

Performance
Downloads
Product Information and Data Sheets
Download Product Information & Data Sheetsv1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagramsv1.0
Download Spare Parts Information & Exploded Diagramsv1.01
Download Spare Parts Information & Exploded Diagramsv1.02
Download Spare Parts Information & Exploded Diagramsv1.03
Operation and Installation Manuals
Download Operation & Installation Manualsv1.0
Download Operation & Installation Manualsv1.01
Certificates & Compliance Information
Download Certificates & Compliance Informationv1.0
- Features and technical specification of the product. Please contact us for further information and specifics.
-
BrandDAB Pumps
-
Product TypeSingle Stage Jet Pump
-
Suitable ForClean Water
-
Bar5.38 Bar
-
ApprovalApproved For Drinking Water
-
Flow Range Categorya. 0 - 99 L/min
-
Flow Rate (L/min)60 L/min
-
Hp1 Hp
-
kPa545 kPa
-
Kilo Watts0.75 kW
-
Head Range Categoryb. 40 - 59 m
-
Max Head (m)53.8 m
-
Port Size Inlet1 inch BSPF inlet
-
Port Size Outlet1 inch BSPF outlet
-
PoweredElectric
-
Warranty (months)24 Months
-
Volts240 V
-
Watts750 W
-
DAB-JINOX102M PUMP SURFACE MOUNTED JET 60L/MIN 53.8M 0.75KW 240V
$679.00
Brand | DAB |
Model | DAB-JINOX102M |
Availability | In Stock |
