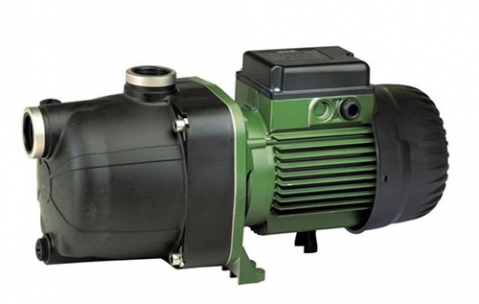

DAB-JETCOM132M - DAB Technopolymer Surface Mounted Pump 80L/min 48m 1.0kW 240V

$619.00
Brand DAB
Model DAB-JETCOM132M
Availability In Stock
General information

Description

  • Self Priming Technopolymer Jet Pumps

  • Suitable for domestic use for water supply and pressurisation, irrigation of gardens and moving water in general

  • DAB Jet pumps are renowned for their unique self-priming and extraordinary deep suction capability up to 9 metres at sea level

  • Available in Technopolymer, they are designed to handle abrasive and corrosive water which makes them ideally suited for spear point applications

  • 1.0kW, 1.36hp, 240V, max hd 48m, max flow 80L/m Ports 1" BSPF In, 1" BSPF Out



Features

  • Corrosion resistant materials

  • AS/NZS 4020 compliant

  • Metal pump body inserts

  • Air gap motor with shaft slinger

  • Machined bearing housings



Benefits

  • Reliable in arduous suction conditions

  • Safe for drinking water

  • Longer life

  • Repairable

  • Robust and self priming design



Advantages

  • Proven efficient performance

  • Will self prime to 9 metres

  • Will not corrode

  • No hazardous materials used

  • Nickel plated brass inserts strengthens pump body

  • Does not let water into motor if seal fails

  • Correct tolerances



Warranty

2 Year DAB Pumps Warranty

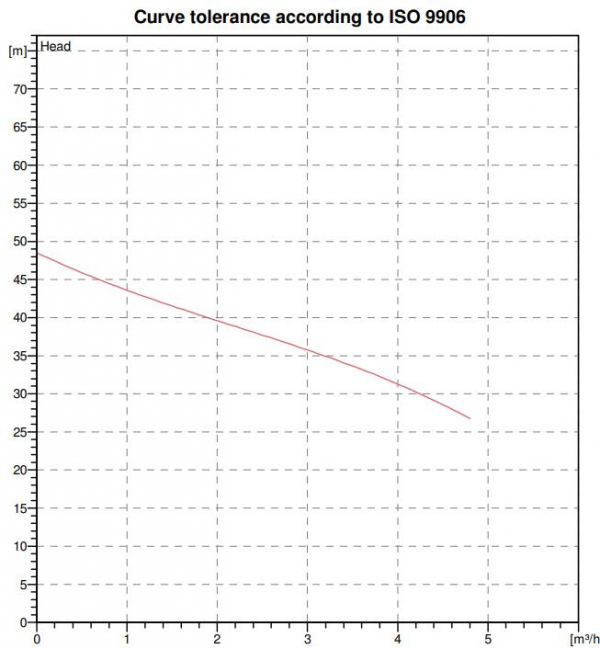

Performance

curve106



Downloads

Product Information and Data Sheets
Download Product Information & Data Sheetsv1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagramsv1.0
Operation and Installation Manuals
Download Operation & Installation Manualsv1.0
Download Operation & Installation Manualsv1.01
Certificates & Compliance Information
Download Certificates & Compliance Informationv1.0
Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Brand
    DAB Pumps
  • Product Type
    Single Stage Jet Pump
  • Suitable For
    Clean Water
  • Approval
    Approved For Drinking Water
  • Flow Range Category
    a. 0 - 99 L/min
  • Flow Rate (L/min)
    80 L/min
  • Hp
    1.36 Hp
  • Kilo Watts
    1.0 kW
  • Head Range Category
    b. 40 - 59 m
  • Max Head (m)
    48 m
  • Port Size Inlet
    1 inch BSPF inlet
  • Port Size Outlet
    1 inch BSPF outlet
  • Powered
    Electric
  • Warranty (months)
    24 Months
  • Volts
    240 V
