For use in supplying water to farmhouses and in small scale agriculture.

1.1kW, 1.5hp, 240V, max hd 60m, max flow 58L/m Ports 1 1/4” BSPF In, 1" BSPF Out

Note: Deep well injector kits sold seperately

Warranty

2 Year DAB Pumps Warranty

Handy Hints for Installing Your Jet Pump

• Location: The pump should be located as close to the water source as possible and should be protected from the elements
• Piping: Only use pipe that is in good condition and free of rust or scale
• Types of Pipe: Plastic or galvanised steel can be used with jet pumps
• Water to Pump Piping: All offset piping should slope upwards from water source to pump.

PRODUCT DETAILS

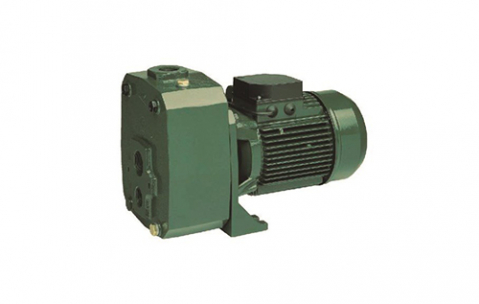

The pump is a self-priming surface mounted deep well pump and has a suction capability of up to 27m with seperately supplied injector kit.

APPLICATIONS

• Domestic installations where a suction lift is required

• Pressure boosting, irrigation and wash down

• Designed for pumping from wells and from rivers and dams using offset.

FEATURES

• 240V single phase TEFC motor with in-built auto reset thermal overload to prevent pump from damage
