Description

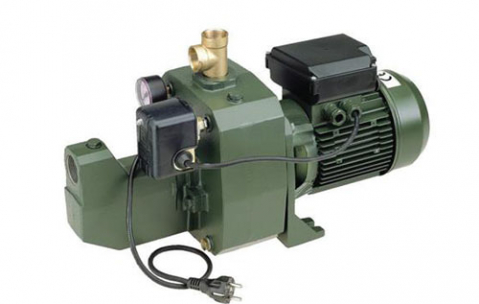

Self Priming Single and Multistage Cast Iron Jet Pressure Systems

• The pump is a self-priming surface mounted jet pump and has a suction capability of up to 8m.

• 1.85kW, 2.5hp, 240V, max hd 62m, max flow 120L/m Ports 1 1/4 BSPF In, 1" BSPF Out

PRESSURE TANKS ARE SOLD SEPARATELY

Application

• Domestic installations where a suction lift is required

• Pressure boosting, irrigation and wash down

• Designed for pumping from tanks, rivers and dams.

Features

• Pressure switch with adjustable differential

• Pressure gauge

• Self priming centrifugal pump with excellent suction capabilty

• 240V single phase TEFC motor with in-built auto reset thermal overload to prevent pump from damage

• A pressure tank is required

Warranty

2 Year DAB Pumps Warranty

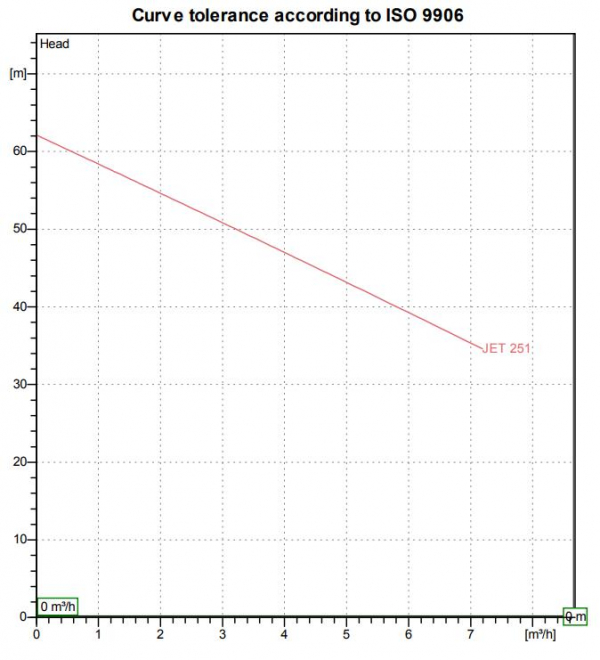

Performance

Downloads

Product Information and Data Sheets

Download Product Information & Data Sheetsv1.0

Download Product Information & Data Sheetsv1.01

Spare Parts Information and Exploded Diagrams

Download Spare Parts Information & Exploded Diagramsv1.0

Operation and Installation Manuals

Download Operation & Installation Manualsv1.0

Download Operation & Installation Manualsv1.01

Certificates & Compliance Information

Download Certificates & Compliance Informationv1.0
