Description
Self Priming Single Stage Jet Assisted Cast Iron Jet Pump
Suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tanks, rivers and dams
1.47kW, 2.0hp, 415V, max hd 41m, max flow 175L/m Ports 1 1/2" BSPF In, 1 1/4” BSPF Out
3 phase pumps require contactor and overload
The pump is a self-priming surface mounted jet pump and has a suction capability of up to 8m
Application
Domestic installations where a suction lift is required
Pressure boosting, irrigation and wash down
Designed for pumping from tanks, rivers and dams.
Features
Self priming centrifugal pump with excellent suction capabilty
Warranty
2 Year DAB Pumps Warranty

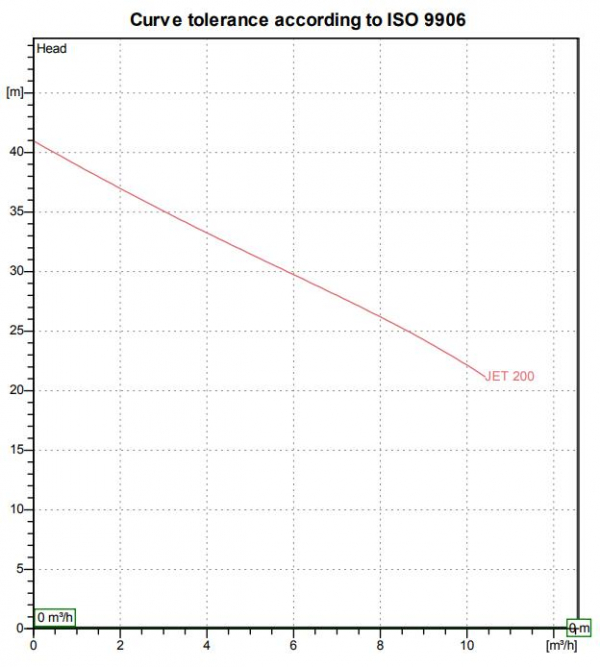

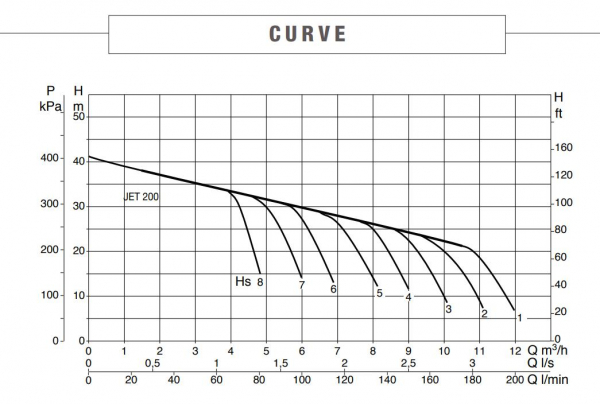

Performance
Downloads
