Description

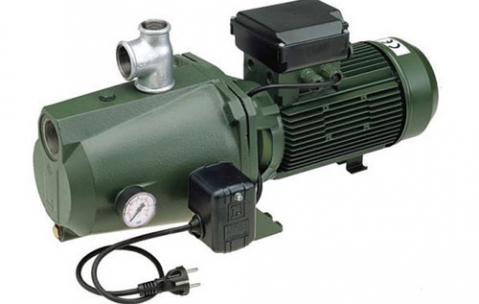

Self Priming Single and Multistage Cast Iron Jet Pressure Systems
The pump is a self-priming surface mounted jet pump and has a suction capability of up to 8m.
2.2kW, 3.0hp, 240V, max hd 51m, max flow 175L/m Ports 1 1/2" BSPF In, 1 1/4” BSPF Out
PRESSURE TANKS ARE SOLD SEPARATELY
Application
Domestic installations where a suction lift is required
Pressure boosting, irrigation and wash down
Designed for pumping from tanks, rivers and dams.
Features
Pressure switch with adjustable differential
Pressure gauge
Self priming centrifugal pump with excellent suction capabilty
240V single phase TEFC motor with in-built auto reset thermal overload to prevent pump from damage
A pressure tank is required
Warranty
2 Year DAB Pumps Warranty

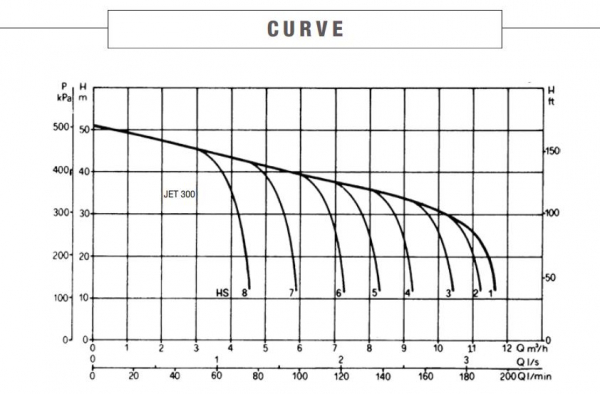

Performance
Downloads
