General information
Spec & Features
Description
Self Priming Single and Multistage Cast Iron Jet Pressure Systems
-
The pump is a self-priming surface mounted jet pump and has a suction capability of up to 8m.
-
1.1kW, 1.5hp, 240V, max hd 61m, max flow 75L/m Ports 1 1/4” BSPF In, 1" BSPF Out
PRESSURE TANKS ARE SOLD SEPARATELY
Application
-
Domestic installations where a suction lift is required
-
Pressure boosting, irrigation and wash down
-
Designed for pumping from tanks, rivers and dams.
Features
-
Self priming centrifugal pump with excellent suction capabilty
-
Pressure switch with adjustable differential
-
Pressure gauge
-
240V single phase TEFC motor with in-built auto reset thermal overload to prevent pump from damage
-
A pressure tank is required
Warranty
2 Year DAB Pumps Warranty

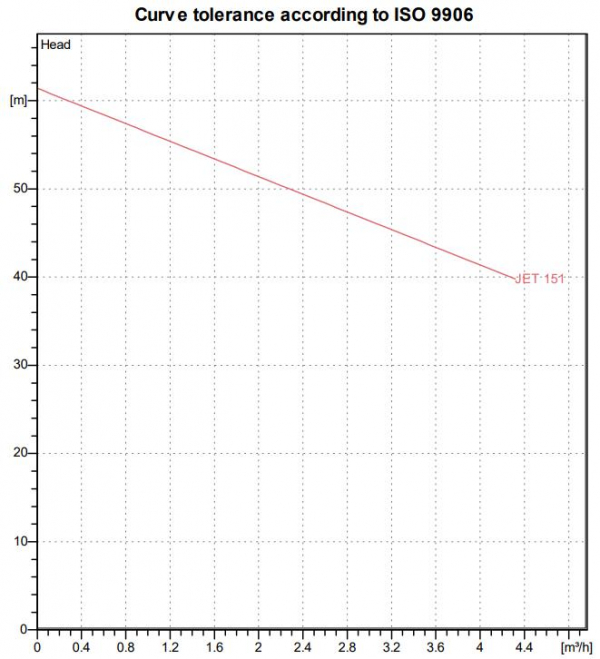

Performance
Downloads
Product Information and Data Sheets
Download Product Information & Data Sheetsv1.0
Download Product Information & Data Sheetsv1.01
Operation and Installation Manuals
Download Operation & Installation Manualsv1.0
Certificates & Compliance Information
Download Certificates & Compliance Informationv1.0
Ask a question- Features and technical specification of the product. Please contact us for further information and specifics.
-
BrandDAB Pumps
-
Product TypeMultistage Jet Pump
-
Suitable ForTank Transfer
-
Bar6.1 Bar
-
Flow Range Categorya. 0 - 99 L/min
-
Flow Rate (L/min)75 L/min
-
Hp1.5 Hp
-
kPa618 kPa
-
Kilo Watts1.1 kW
-
Casing MaterialCast Iron
-
Head Range Categoryc. 60 - 99 m
-
Max Head (m)61 m
-
Port Size Inlet1.25 inch BSPF inlet
-
Port Size Outlet1 inch BSPF outlet
-
PoweredElectric
-
Warranty (months)24 Months
-
Volts240 V
-
Watts1100 W
-
DAB-151MP - PUMP SURFACE MOUNTED CAST IRON WITH PRESSURE SWITCH 75L/MIN 61M 1.1KW 240V
$1,669.00
| Brand | DAB |
| Model | DAB-151MP |
| Availability | In Stock |
