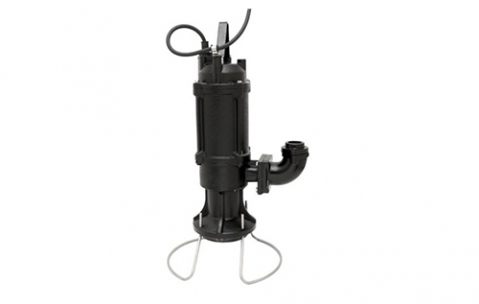

BIA-PDG150MA-WITH-FLOAT - PUMP SUBMERSIBLE SEWAGE WITH FLOAT 50L/MIN 50M 1100W 240V

$3,639.00
Brand BIANCO
Model BIA-PDG150MA-WITH-FLOAT
Availability In Stock
General information

Description

Bianco Positive Displacement Grinder Pump High Pressure

The pump is a positive displacement grinder pump with a heavy duty cutter and cutter ring used to treat unstrained waste waters in "low" flow, high head applications.



Warranty

2 Year Bianco Pumpz Warranty



Bennifts:

  • Cast iron pump body for durability under harsh conditions
  • Heavy duty silicon carbide mechanical seal
  • Cutter with cutter rings cuts solids to smallest possible size to reduce clogging
  • Used for unstrained waste waters
  • Perfect for low pressure sewer applications
  • Also available in Packaged Pump Stations - 900L, 1200L and 3000L sizes. Suitable for new house dwellings and low lying, hilly, sand or rocky areas.



1.1kW, 1.5hp, 240V, with float switch, max hd 50m, max flow 50L/m, 1 1/4” BSPF outlet



Documents:
Product Information and Data Sheets
Download Product Information & Data Sheetsv1.0
Product Brochures
Download Brochuresv1.0Download Brochuresv1.01
Operation and Installation Manuals
Download Operation & Installation Manualsv1.0
Certificates & Compliance Information
Download Certificates & Compliance Informationv1.0
Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Brand
    Bianco Pumpz
  • Product Type
    Sewage Pump
  • Suitable For
    Sewage and Wastewater
  • Bar
    5 Bar
  • Flow Range Category
    a. 0 - 99 L/min
  • Flow Rate (L/min)
    50 L/min
  • Float
    Float Included
  • Hp
    1.5 Hp
  • kPa
    500 kPa
  • Kilo Watts
    1.1 kW
  • Head Range Category
    b. 40 - 59 m
  • Max Head (m)
    50 m
  • Port Size Outlet
    1 1/4 inch BSPF outlet
  • Powered
    Electric
  • Warranty (months)
    24 Months
  • Volts
    240 V
  • Watts
    1100 W
