Description

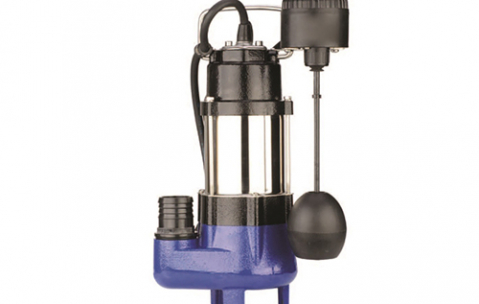

The BIA B25VAS2-FF is a rugged vortex type drainage pump fitted with a cast iron semi vortex impeller. With a free passage of 15mm this pump is suitable for general drainage applications with clean or slightly dirty water.

Fitted with a vertical ‘fixed’ float this pump is compact and suitable for use in situations where space is limited.

Ideal for greywater pump out, sump emptying or pumping of light slurries from cellars, ditches, pits, ponds and drains.

Benefits

• Easy installation and automatic operation

• Float motion is managed reducing the risk of snagging

Features

• Quality pump materials and construction to ensure reliable operation

• Carry handle

• Industrial grade coating

• 10m H07RN-F Neoprene power lead and float lead

To ensure adequate motor cooling, as per the user manual, exercise care matching pump and chamber size to prevent the risk of cycling (too many stops/ starts per hour) or continuous running.

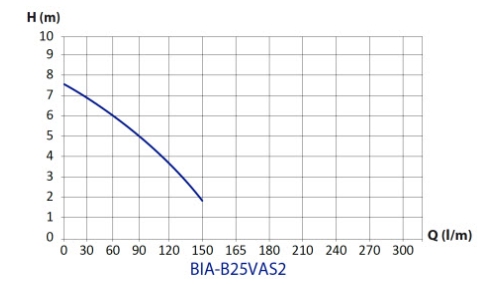

Hydraulic Performance

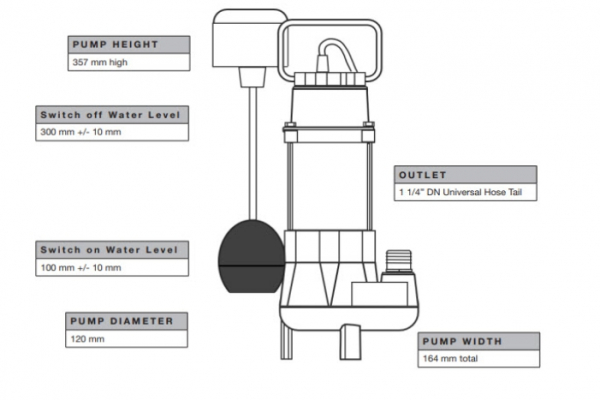

Pump Dimensions

Warranty

2 Year BIANCO Warranty

Documents

Product Information and Data Sheets

Download Product Information & Data Sheetsv1.0

Operation and Installation Manuals

Download Operation & Installation Manualsv1.0
