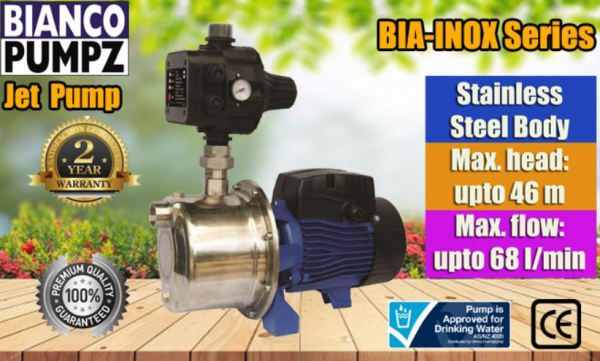

The pump is a self-priming surface mounted pressure system pump supplied with plug and play leads (IEC type). The self-priming ability provides excellent suction capacity of up to 9m. Used especially for supplying water to domestic installations. Used especially for supplying water to domestic installations and applications where a suction lift is required.

FEATURES

• Self-priming pumps and systems
• Automatic pump control and dry-run protection
• Pump body: Stainless Steel 304
• Impeller: Noryl Glass Reinforced
• Approved for potable water – AS/NZS 4020
• Power: 750W
• Max head: 46m
• Max Flow: 68lpm
• 2 Year Warranty

LIQUID

• Liquid Type: Clean Water
• Clean water temperature range: +2 °C to +40 °C

 MATERIALS

• Pump body: Stainless Steel 304,Jet/Venturi, Diffuser
• Impeller: Noryl Glass Reinforced
• Mechanical seal: Carbon/Ceramic/Nitrile
• O rings: Nitrile
• Power Cable: 2m Cable H05 3G1.0

 INSTALLATION

• Maximum ambient temperature: +40 °C
• Maximum operating pressure: 6 bar

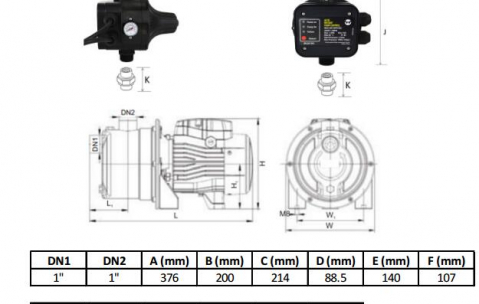

• Pipe connections suction/discharge: 1” BSPF / 1” BSPM
