Description

Bianco Stainless Steel Horizontal Multi Stage Pump with nXt PRO Intelligent 2 mode controller

Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.

1.3kW, 1.75hp, 240V, max hd 60m max flow 108L/m, 10 taps

Ports 1-1/4" BSPF In, 1" BSPM Out

Features

• The new nXt Pro intelligent electronic pump control is fitted and wired to the pump with plug and play leads for automatic starting, stopping and restarting after power loss or water loss
• The nXt Pro controller has an in built check valve to prevent water back flow through the pump
• Two operating modes: Mode 1 and Mode 2
• In Mode 1, the sarting pressure can be adjusted and in Mode 2, both the starting and stopping pressures can be adjusted to fine tune the installation. A pressure tank is required for Mode 2.
• Corrosion resistant pump body, diffuser and impeller
• Mechanical shaft seal
• comes complete with plug and play leads
• 240C single phase TEFC motor with in built auto reset thermal overload

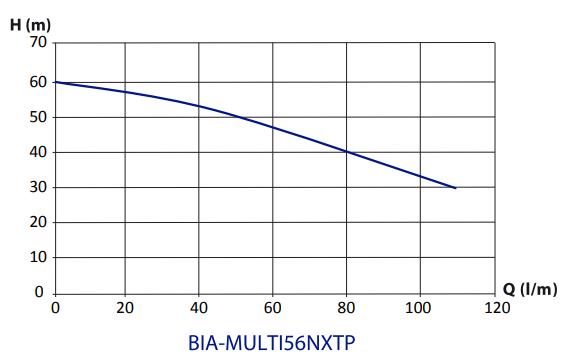

Performance

Warranty

2 Year Bianco Pumps Warranty
