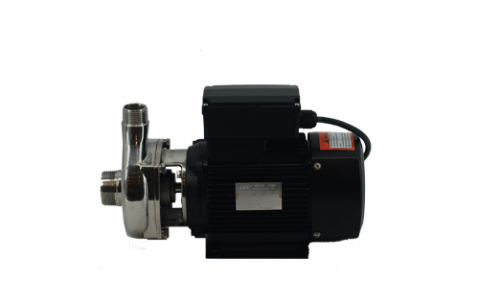

Description

40LBD-0.75S pump adopts VITON or TEFLON high-temperature resistant mechanical seal, stainless steel wetting parts and connecting frame. With scientific structure, excellent performance, outstanding modeling, the pump has a lot of merits such as reliable corrosion resistance, convenient operation and maintenance, compact structure, low energy consumption, etc. It is widely used for food,beverage, pharmacy, pharmacy, sewage, chemical liquid, electroplating, bleaching, sea water, etc.

Feature

• Stainless Steel wetting part

• High temperature resistant

• Corrosion resistant, widely used for food, beverage, pharmacy, pharmacy, sewage, chemical liquid, electroplating, bleaching, sea water, etc

• Compact structure, convenient operation and maintenance

• Power: 1.0HP, 0.75KW

• Max Head: 16.7m

• Max Flow: 131.6 l/min

• Maximum volumetric of medium solid: 0.1%

• Maximum size of solid particle: 0.2 mm

• 2 Year Warranty

APPLICATION LIMITS

• Max. medium temperature +70℃

• Maximum volumetric of medium solid: 0.1%

• Maximum size of solid particle: 0.2 mm

• pH: 4 to 10
