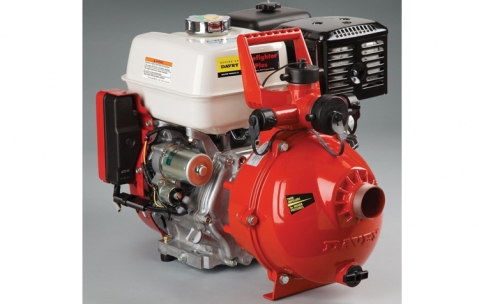

Davey 5213HE Twin Impeller Firefighter with Honda Engine 13Hp Electric Start With Roll Frame

$5049.00 $3,799.00
Brand Davey
Model 5213HE
Availability In Stock
General information



Petrol Driven Firefighter Pumps

Yellow casing - single stage pumps,

Red casing - twin stage pumps.  Available with your choice of Honda or Briggs & Stratton engines.

Rugged, economical single and twin stage self priming fire pumps. Solid, class leading performance, Australian designed and made, no.1 in Australia and sold worldwide.

These units are driven by either a Honda or Briggs & Stratton Engine and available with 3 or 4 outlets in most models:

    • 163cc Honda GX160 engine
    • 196cc Honda GX200 engine. The GX200 engine is also available in Electric Start.
    • 270cc Honda GX270 engine - Electric Start
    • 389cc Honda GX390 engine - Electric Start

Davey Firefighter pumps also have the flexibility to draw from a shallow or deep well when power is not available - jet kit is an optional extra and sold separately.

APPLICATIONS:

  • Firefighting
  • Tanker to tanker water transfer
  • High head general water transfer
  • Sheep jetting
  • Crop spraying
  • Irrigation
  • Boom spraying

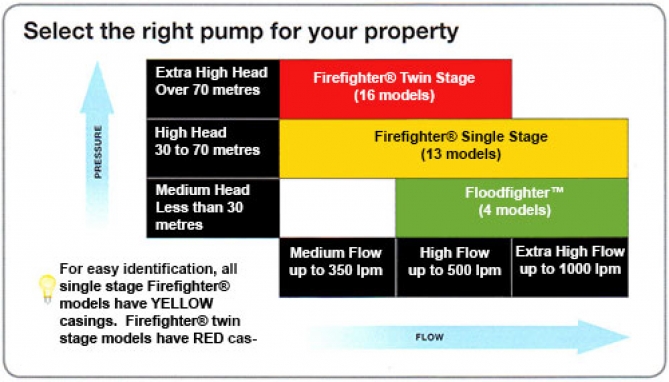

Selection Guide

 firefighterselectionchart

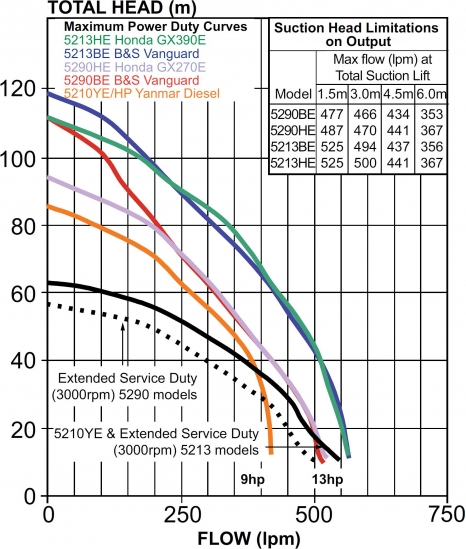

Pump Curve

Davey PumpCurve FF SingleDavey PumpCurve FF Twin



Davey PumpCurve FFPRO Twin2



Pumps Range

Type - Single StageType - Twin StageEngine Capacity (CC)Description
 5155H 5255H 163 Honda GX160 with 4 way outlet
 5155H23W 5255H23W 163 Honda GX160 with 3 way outlet
 5165H 5265H 196 Honda GX200 with 4 way outlet
 5165HV13W 5265HV13W 196 Honda GX200 with 3 way outlet and viton seals
 5165H23W 5265H23W  196 Honda GX200 with 3 way outlet
 5165HV3 5265HV3  196 Honda GX200 with 3 way outlet and viton seals
 5165HE 5265HE  196 Honda GX200 with 3 way outlet, electric start
 5190HE 5290HE  270 Honda GX270 with 3 way outlet, electric start
 5113HE 5213HE  389 Honda GX390 with 3 way outlet, electric start
 5165B 5265B  205 Briggs & Stratton Vanguard with 4 way outlet
 N/A 5210BE 305 Briggs & Stratton Vanguard with 3 way outlet, electric start
 N/A 5213BE 420 Briggs & Stratton Intek with 3 way outlet, electric start































Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Flow capacities to
    680 lpm
  • Maximum total head
    105
  • Maximum suction lift
    7m
  • Maximum water temperature
    50ºC
  • Displacement (cc)
    389 CC
  • Fuel tank (litres)
    6.5L
  • Approximate fuel consumption @ full load @ 3600 rpm
    3.25 l/hr
  • Inlet / Outlet Size
    2” BSP(M) / 1 x 2” BSP(M); 2 x 1” BSP(M)
  • 1 Year Warranty For
    Wet end, Yanmar engines and accessories
  • 3 Years Warranty For
    Honda engines
  • Running time per tank @ full load @ 3600rpm
    2.0 hrs
  • Maximum casing pressure
    1600kPa
