DAB-EUROINOX40/50MP - PUMP SURFACE MOUNTED MULTISTAGE WITH PRESSURE SWITCH 80L/MIN 57.7M 0

$1,499.00
Brand DAB
Model DAB-EUROINOX40/50MP
Availability In Stock
General information

Description

DAB Pressure Pumps with Mechanical Switch

Suitable for domestic use for water supply and pressurisation, irrigation of gardens and moving water in general.

Includes non-return valve.

DAB Jet pumps are renowned for their unique self priming and extraordinary deep suction capability up to 9 meters at sea level.

All pressure switch controlled pumps must use a pressure tank (refer to Reflex pressure tanks).

0.80kW, 1.1hp, 240V, max hd 57.7m, max flow 80L/m, 8 taps Ports 1” BSPF In, 1” BSPF Out. Includes NRV.



Application

Multi-stage centrifugal pump with horizontal shaft, with excellent suction capacity even in the presence of air bubbles, featuring extremely quiet operation suitable for domestic water supply and pressurisation, irrigation of gardens and general

water movement.



CONSTRUCTIONAL FEATURES OF THE PUMP

Pump body in stainless steel. Motor support in die cast aluminium, with seal holder cover in AISI 304 stainless steel. Carbon/ceramic mechanical seal.

Rotor shaft in AISI 304 stainless steel.

Impeller and diffuser bodies and diffuser in technopolymer.

Stainless steel wear ring.



CONSTRUCTIONAL FEATURES OF THE MOTOR

Asynchronous, continuous service motor.

Incorporated thermo-amperometric protection and permanently inserted capacitor in the single phase version.

Overload protection to be provided by the user for the three-phase version.



Features

Self Priming Stainless Steel Multistage Pressure Pumps

Ideal for small to large homes, irrigation systems, caravan parks and schools.

Quality pressure switch, adjustable differential, cable glands and liquid filled pressure gauge.

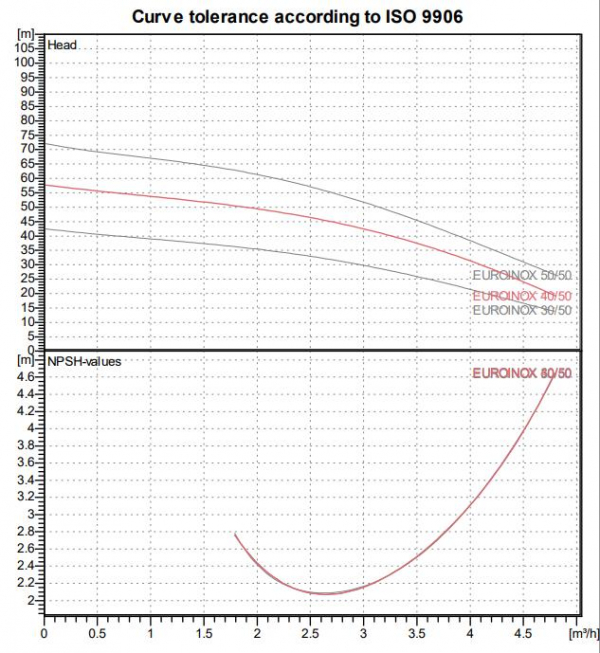

Performance

curve101



Downloads

Product Information and Data Sheets
Download Product Information & Data Sheetsv1.0
Download Product Information & Data Sheetsv1.01
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagramsv1.0
Download Spare Parts Information & Exploded Diagramsv1.01
Download Spare Parts Information & Exploded Diagramsv1.02
Download Spare Parts Information & Exploded Diagramsv1.03
Download Spare Parts Information & Exploded Diagramsv1.04
Operation and Installation Manuals
Download Operation & Installation Manualsv1.0
Download Operation & Installation Manualsv1.01
Certificates & Compliance Information
Download Certificates & Compliance Informationv1.0
Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Brand
    DAB Pumps
  • Product Type
    Pressure System
  • Suitable For
    Clean Water
  • Bar
    5.77 Bar
  • Approval
    Approved For Drinking Water
  • Flow Range Category
    a. 0 - 99 L/min
  • Flow Rate (L/min)
    80 L/min
  • Hp
    1.1 Hp
  • kPa
    585 kPa
  • Kilo Watts
    0.8 kW
  • Head Range Category
    b. 40 - 59 m
  • Max Head (m)
    57.7 m
  • Port Size Inlet
    1 inch BSPF inlet
  • Port Size Outlet
    1 inch BSPF outlet
  • Powered
    Electric
  • Taps
    8 Taps
  • Warranty (months)
    24 Months
  • Volts
    240 V
  • Watts
    800 W
